SMZI platform

SMZI platform

0060306000
Description:

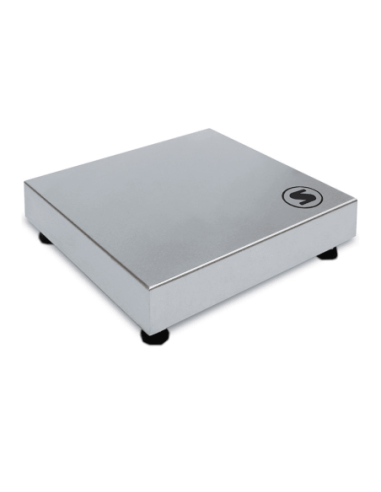

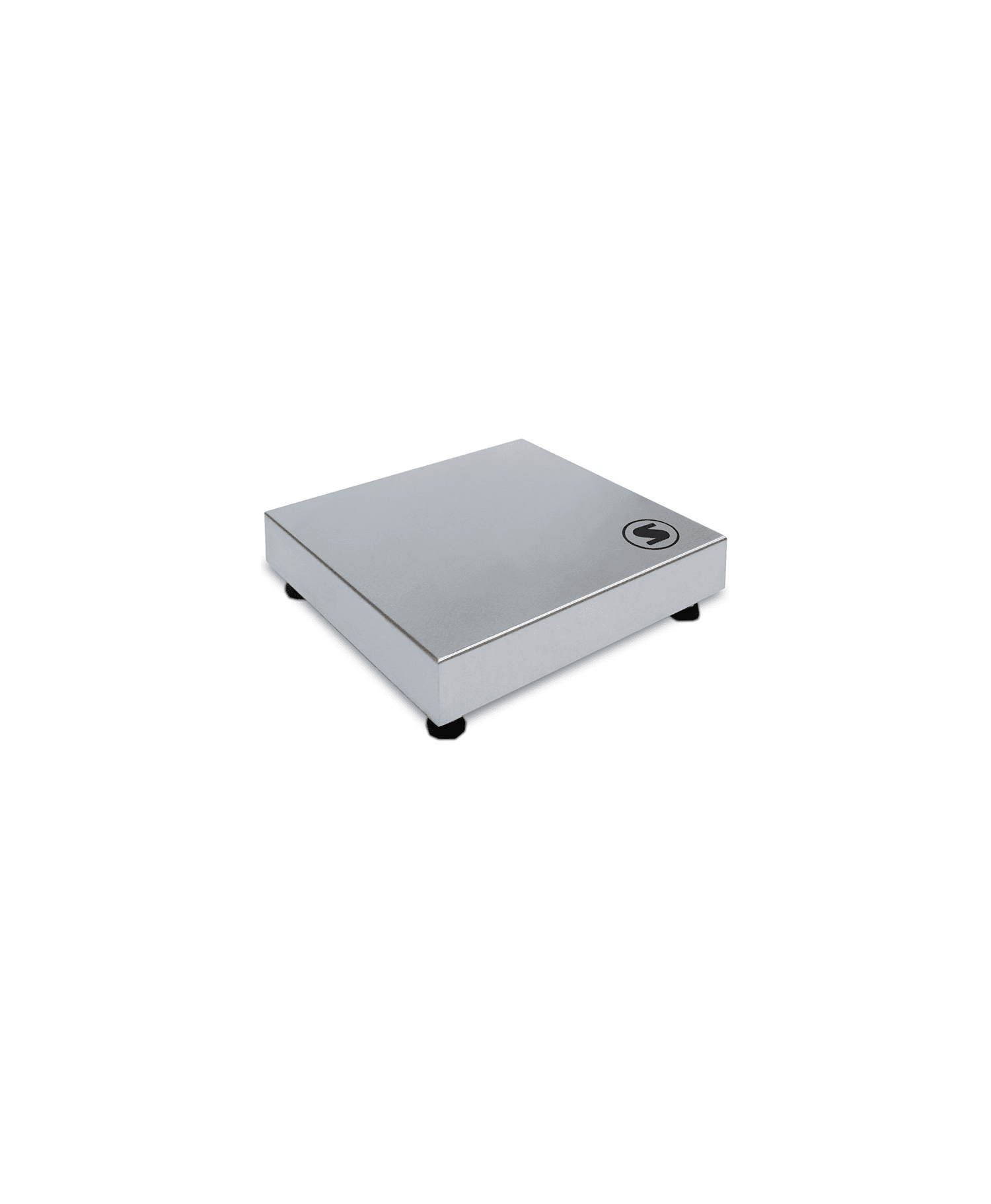

AISI-304 stainless steel multirange platforms, suitable for high pressure cleaning - 31x27,5 - 3kg/6kg



Specially designed for work in demanding applications: food processing, chemical contamination, etc.
Scale of two or three approved ranges (accuracy class III).
Extremely robust and excellent performance.
Moisture and corrosion protection for extreme applications.
Meets high standards of hygiene and food processing.
Extra low profile modular design and construction.
Weighing plate made of AISI-304 stainless steel.
(removable for easy cleaning)
Protection class IP 68/69 K
(suitable for high pressure cleaning)
Stainless steel load cell.
Mechanical overload safety to protect the load cell.
Cable length: 2.5 m.
Dimensions from 310 x 275 mm to 800 x 600 mm.
Platform levelling up to 10 mm with 4 adjustable feet and spirit level
Nominal operating temperature: -10 °C to +40 °C.

Dimensions / Capacities
-310 x 275 x 70 mm - 3 kg / 6 kg - 1 g / 2 g.
-310 x 275 x 70 mm - 6 kg / 15 kg - 2 g / 5 g.
-400 x 300 x 75 mm - 6 kg / 15 kg - 2 g / 5 g.
-400 x 300 x 75 mm - 15 kg / 30 kg - 5 g / 10 g.
-520 x 400 x 100 mm - 30 kg / 60 kg - 10 g / 20 g.
-520 x 400 x 100 mm - 60 kg / 150 kg - 20 g / 50 g.
-660 x 550 x 135 mm - 150 kg / 300 kg - 50 g / 100 g.
-800 x 600 x 135 mm - 150 kg / 300 kg - 50 g / 100 g.

Platform material: Inox

Dimmensions: Others

Tipo (platforms): Monocell
