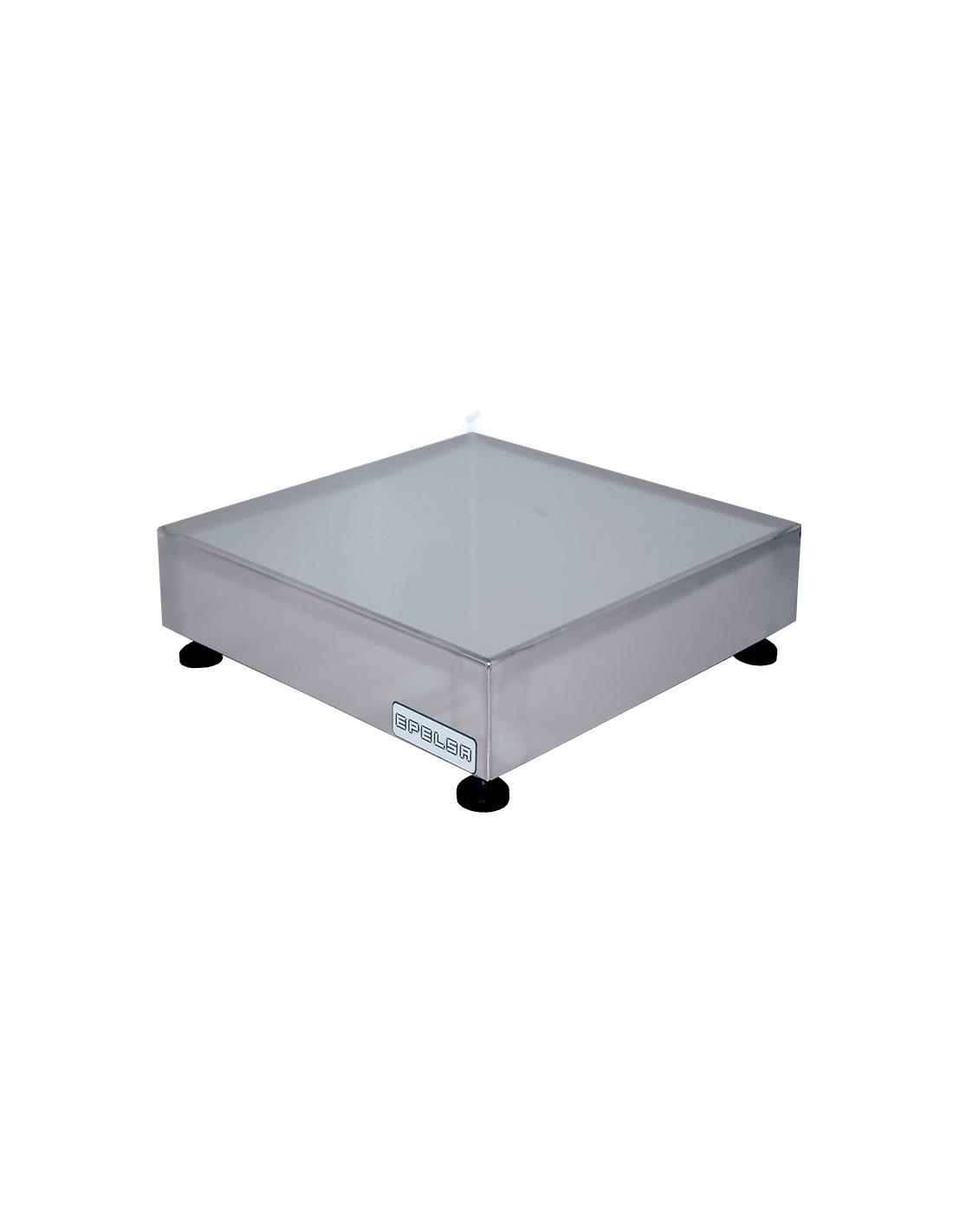

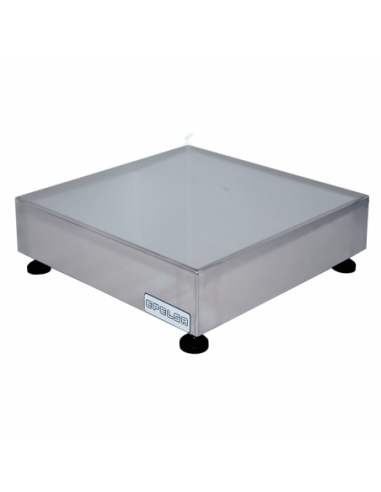

Single load cell platform in AISI-316 stainless steel - 40x40 - 15kg
Structure of 2 AISI-316 stainless steel crosses with load cell support.
4 adjustable feet with a diameter of 40mm, which achieve a minimum height of 117mm and a maximum height of 130mm.
It incorporates an AISI-316 stainless steel cover protected against corrosion and other different external agents.
It incorporates an IMV1 type stainless steel load cell with IP67 protection and specific corrosion resistant polishing.
2.75m. cable for connection to the weight indicator.
1 central load cell stop and 4 corner stops for overload protection.
These platforms can work under temperatures from -10 to +40ºC.
Net Weight: 13.65 kg.
Dimensions: 403 x 403 x 95mm. (average height)
Capacities: 15 kg, 30 kg, 60 kg and 150 kg.
Platform material: Inox
Tipo (platforms): Monocell
