0012105000
Description:

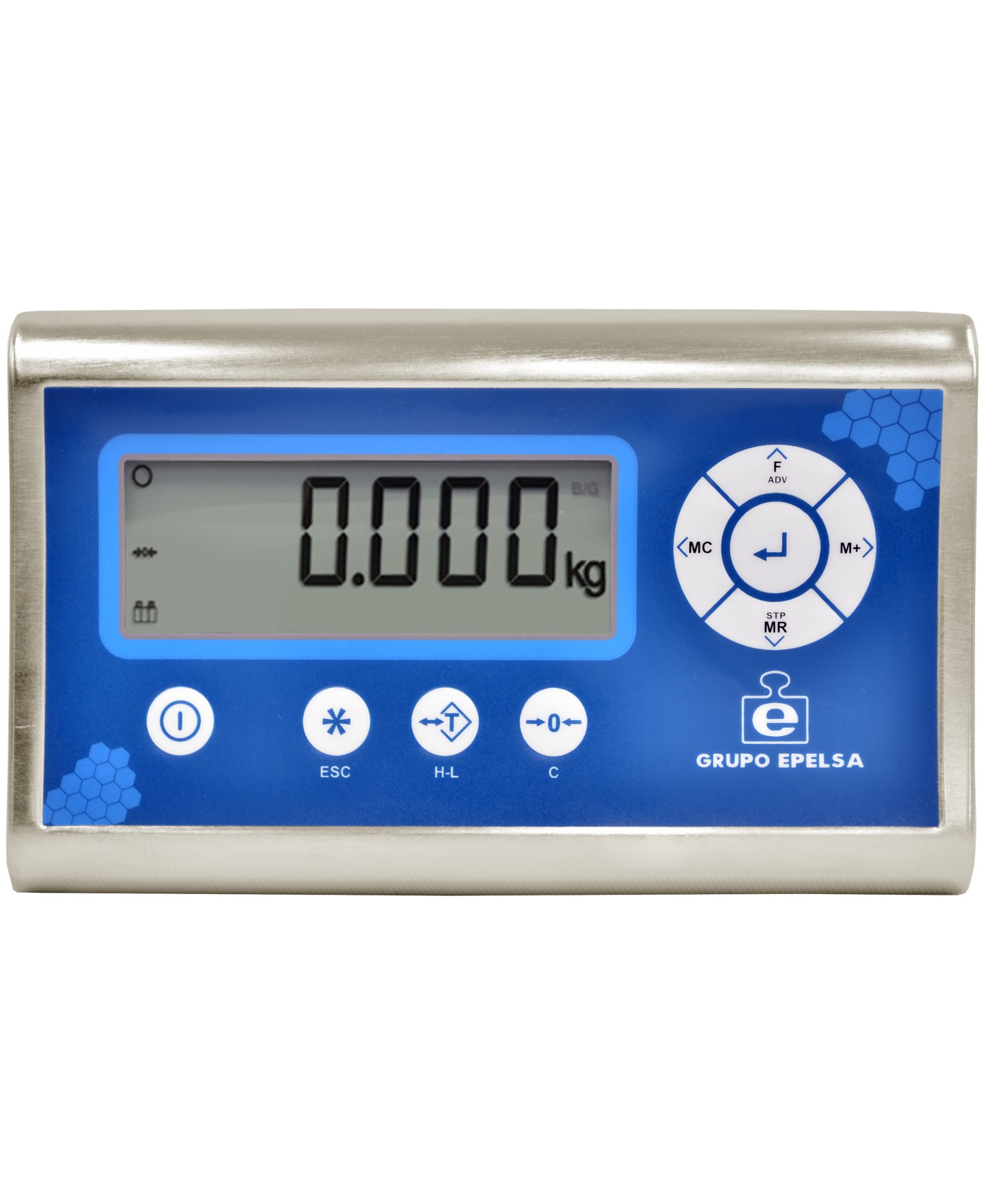

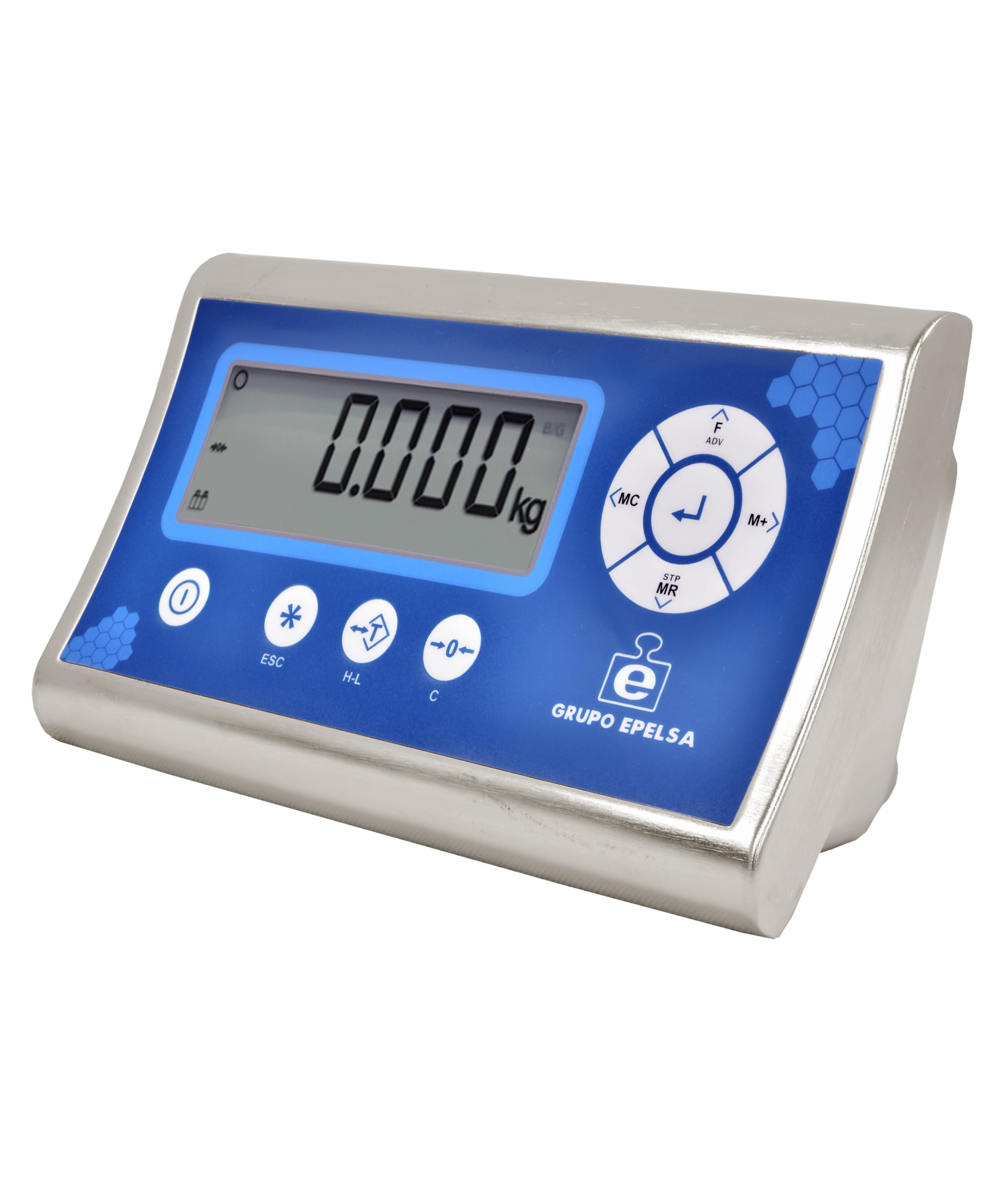

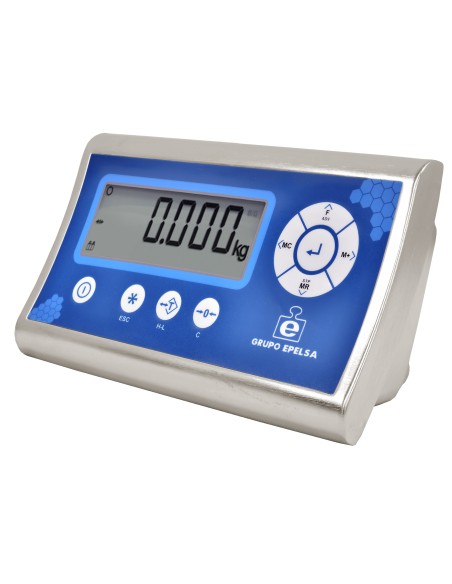

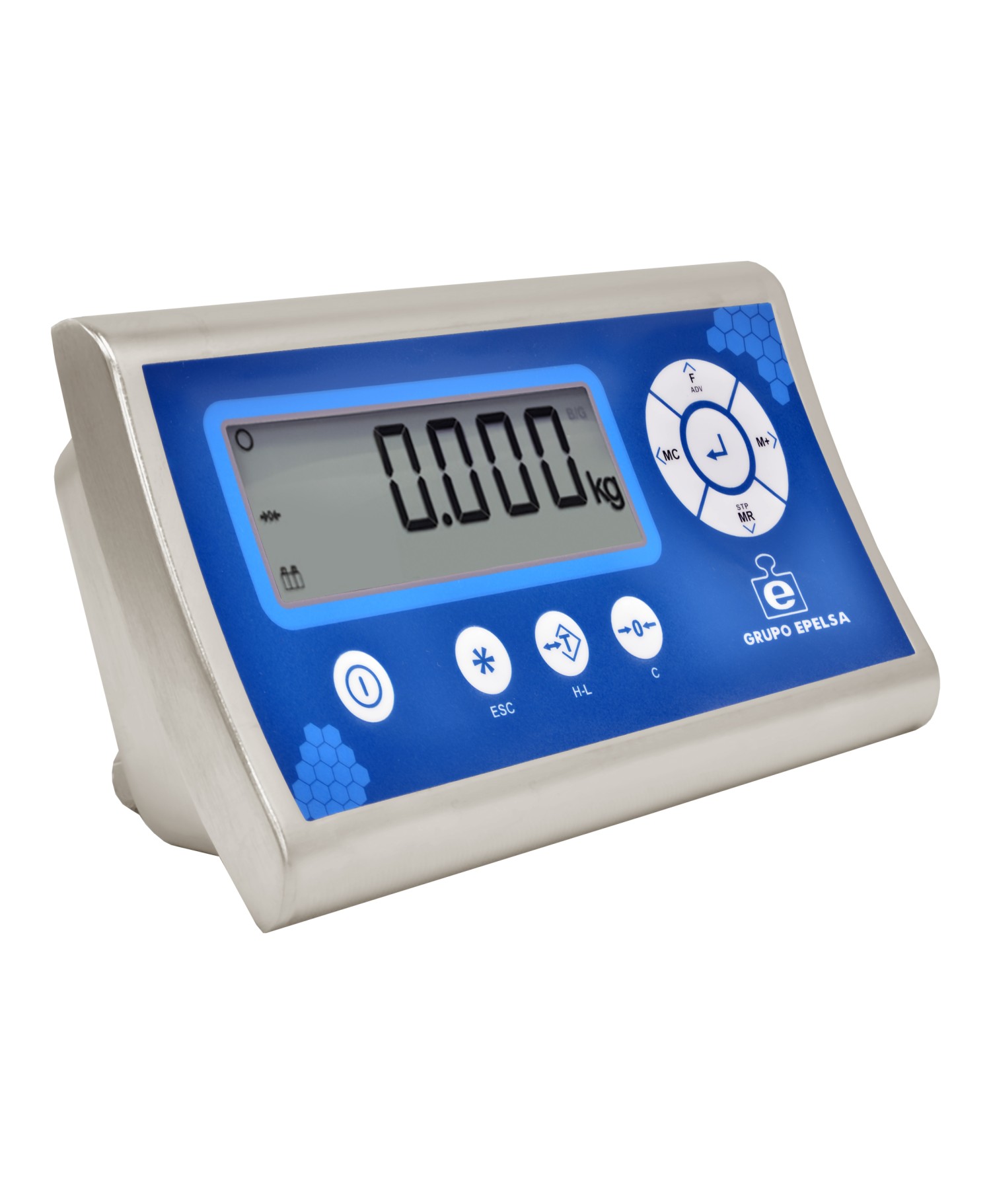

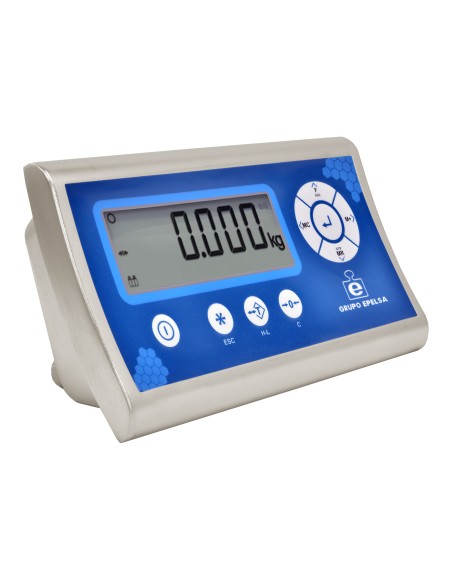

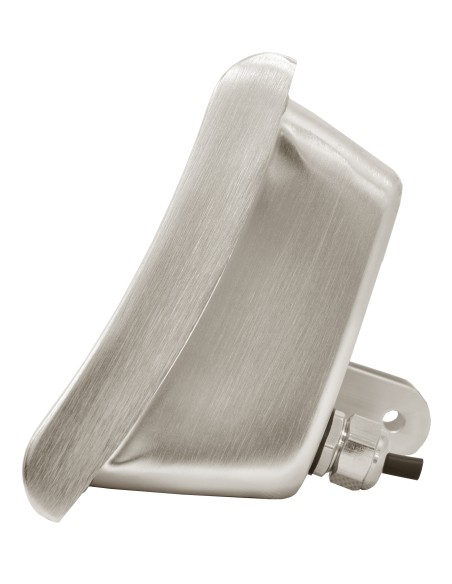

Multifunction Weight indicator DZN-66 in stainless steel housing

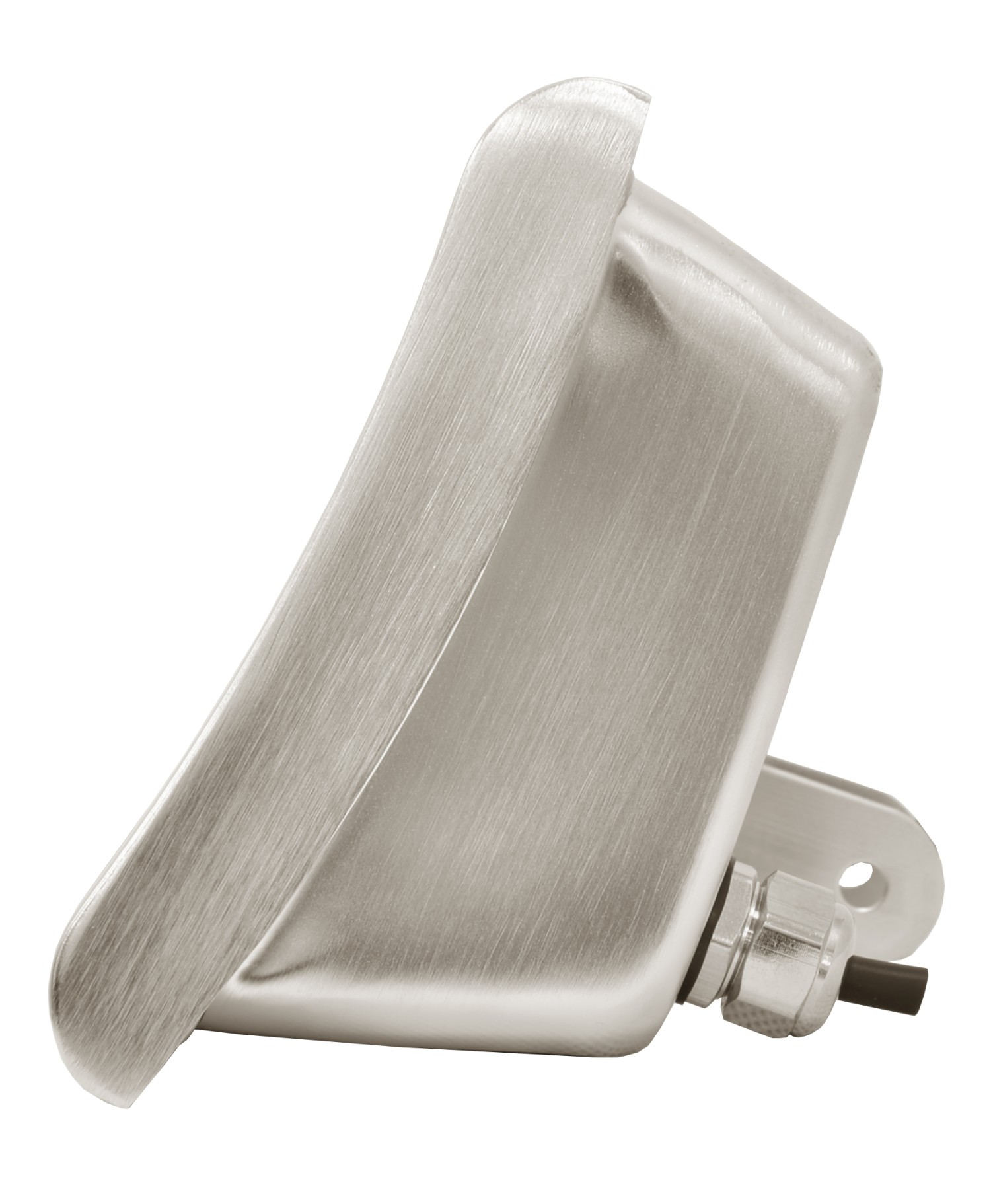

Stainless steel housing with IP-65 degree of protection.
Wall mounting for wall or column mounting in ABS.
8 membrane function keys plus ON/OFF.

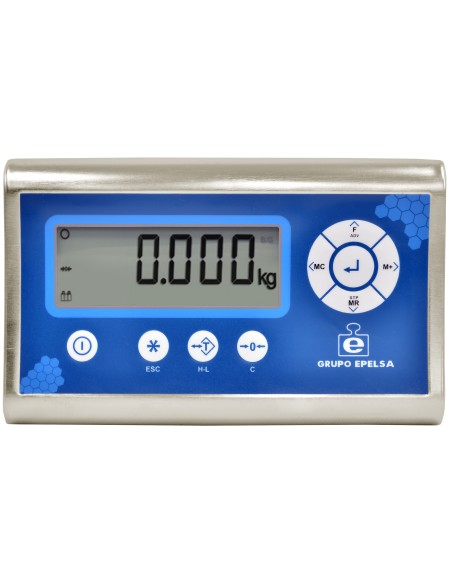

6-digit 1” LCD and bar graph.
Adjustable backlight of different shades (capable of automatic change to green, yellow and red, like a traffic light).

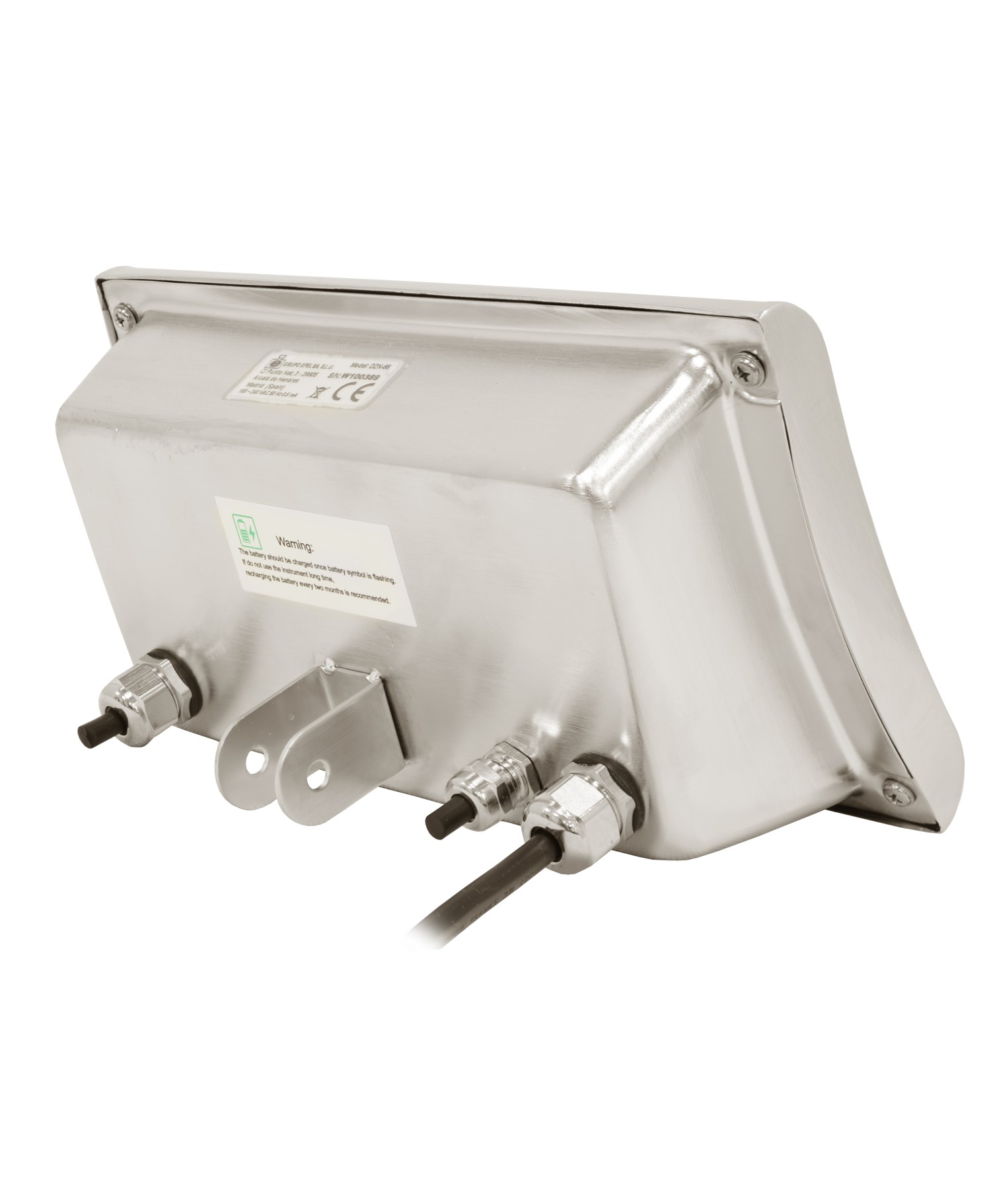

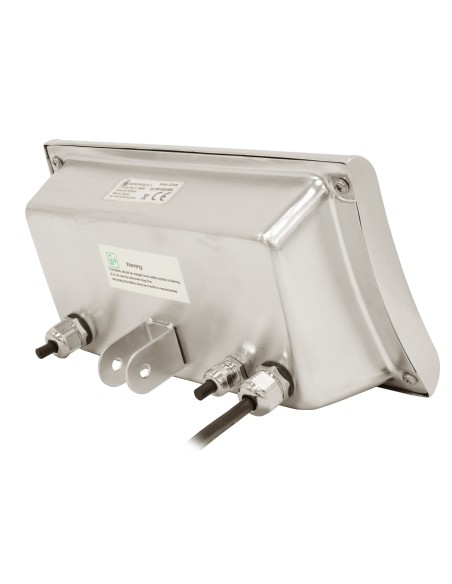

Cable outlet through watertight cable glands.
Metrological access by opening the housing.

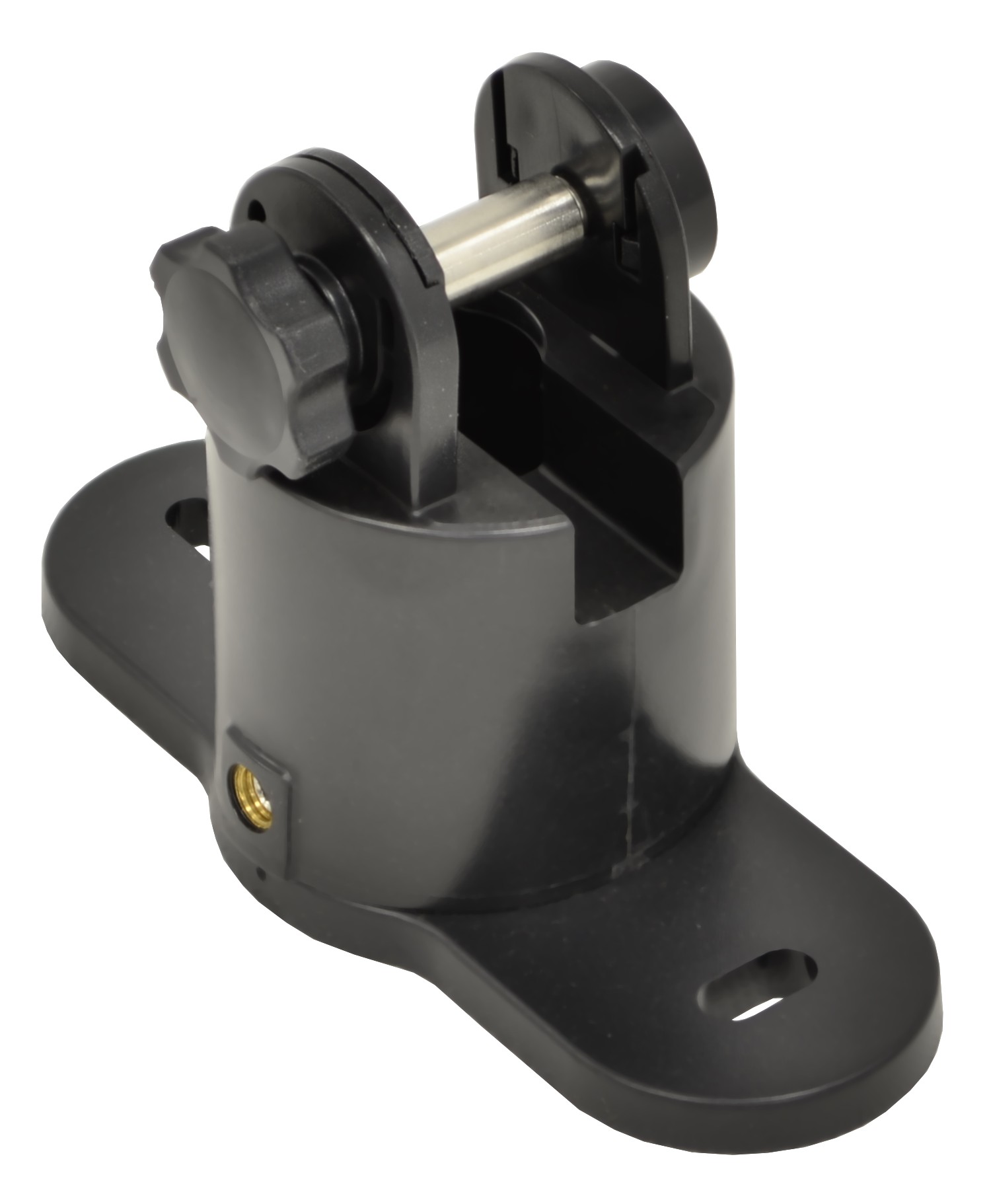

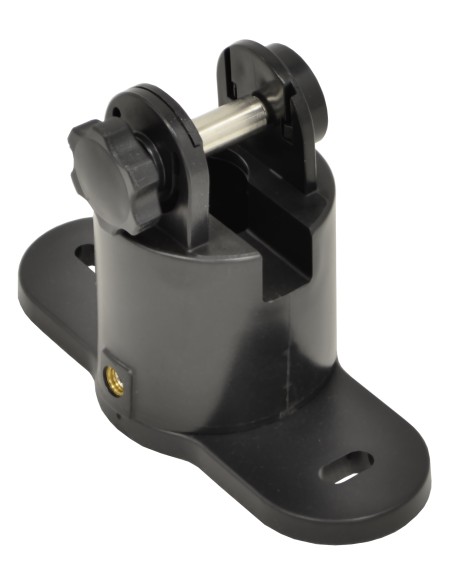

Column and/or wall support.
Real-time clock.
Internal resolution: 16,000,000 dots.
Maximum setting resolution (UI): 30,000 divisions.
Approved to 6000 divisions (2 ranges of 3000 divisions).
Maximum sensitivity: 0.4 µV/division.
Connection with up to 4 x 350 Ω cells (8 x 700 Ω cells).
Internal 2000mAh Li-ion battery, with up to 36 hours of autonomy.
RS-232 channel for PC or Printer (various ticket formats).
Maintenance: limited to cleaning if necessary.
Certificate according to European Directive 2014/31/EU for non-automatic weighing instruments, No. 0200-NAWI-09567, issued by FORCE Certification of Denmark.

Net weight: 1,470 kg / Packed: 1,860 kg
Packing dimensions: 22,5 x 13,5 x 8 cm.

Type (Indicators & repeaters): Multifunction

Tactile: No

Alphanumeric: Yes

With printer: No

with Labeler: No
