es::Visor EP3025/USB inox CE|0

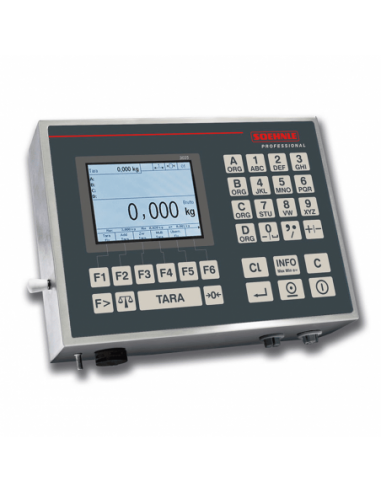

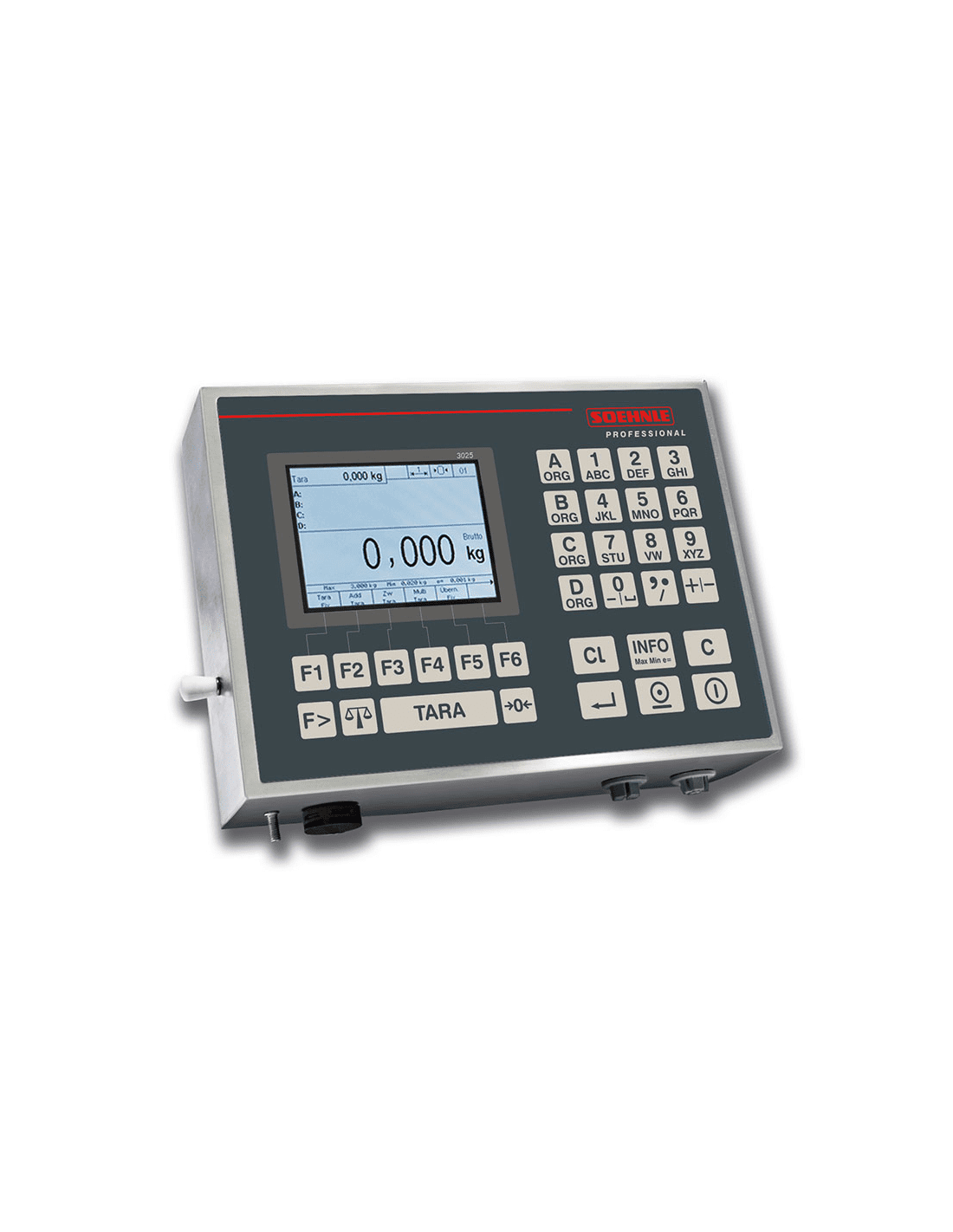

EP3025 indicator


Multifunctional eight indicator for various applications in stainless steel housing with IP67 protection


Approved, class III, up to 10,000 divisions and protection class IP 67.
5 application programmes: weighing and tare, totalisation and order preparation, piece counting, parts checking, checkweighing (+/-), dynamic weighing.
Memory for 999 fixed values per memory (option).
4 data organisation memories, e.g. for article number, customer number, dispatch ticket number, 6 lines with 35 characters each.
Barcode management with 10-field filter and multi-scan function.
RS-232 serial channel and USB channel.
Memory card (Micro SD card) for alibi storage with a capacity of 2 million entries, as well as for the storage of fixed values and for the installation of software updates and for data backup.
Table or wall mount.

Compact housing made of stainless steel AISI-304, protection class IP 67, suitable for harsh operating conditions.
Integrated power supply, 100 - 240 V, 50 - 60 Hz.

Display and Keyboard
Easy to read 3.5” TFT colour display (QVGA 320 x 240 pixels).
Adjustable background colour (green, white, light blue, yellow, blue, magenta and red), backlight adjustable from 30 to 100%.
Display control function per color.
Large weight display with 11 mm height digits.
Membrane keypad with 32 keys alphanumeric for reliable operation.

Connectivity options
Permissible resolution up to 10,000 divisions / 3 x 3,000 divisions with corresponding load cells.
A digital precision scale can be connected via the RS 232 interface.

A total of up to 3 devices can be connected to the 3025 terminal (digital reference scale, scanner, data logger, printer, etc.). The following interfaces are optionally available:
-3 serial interfaces RS232 / RS 422 : RS 485 (pluggable)
-1 Ethernet interface.
-1 I/O board with 4 inputs and 6 outputs.

Additional functions
User password with login function.
Information management
Remote maintenance / Analysis.

Platform ID chip.

Type (Indicators & repeaters): Multifunction

Tactile: No

Alphanumeric: Yes

With printer: No

with Labeler: No
