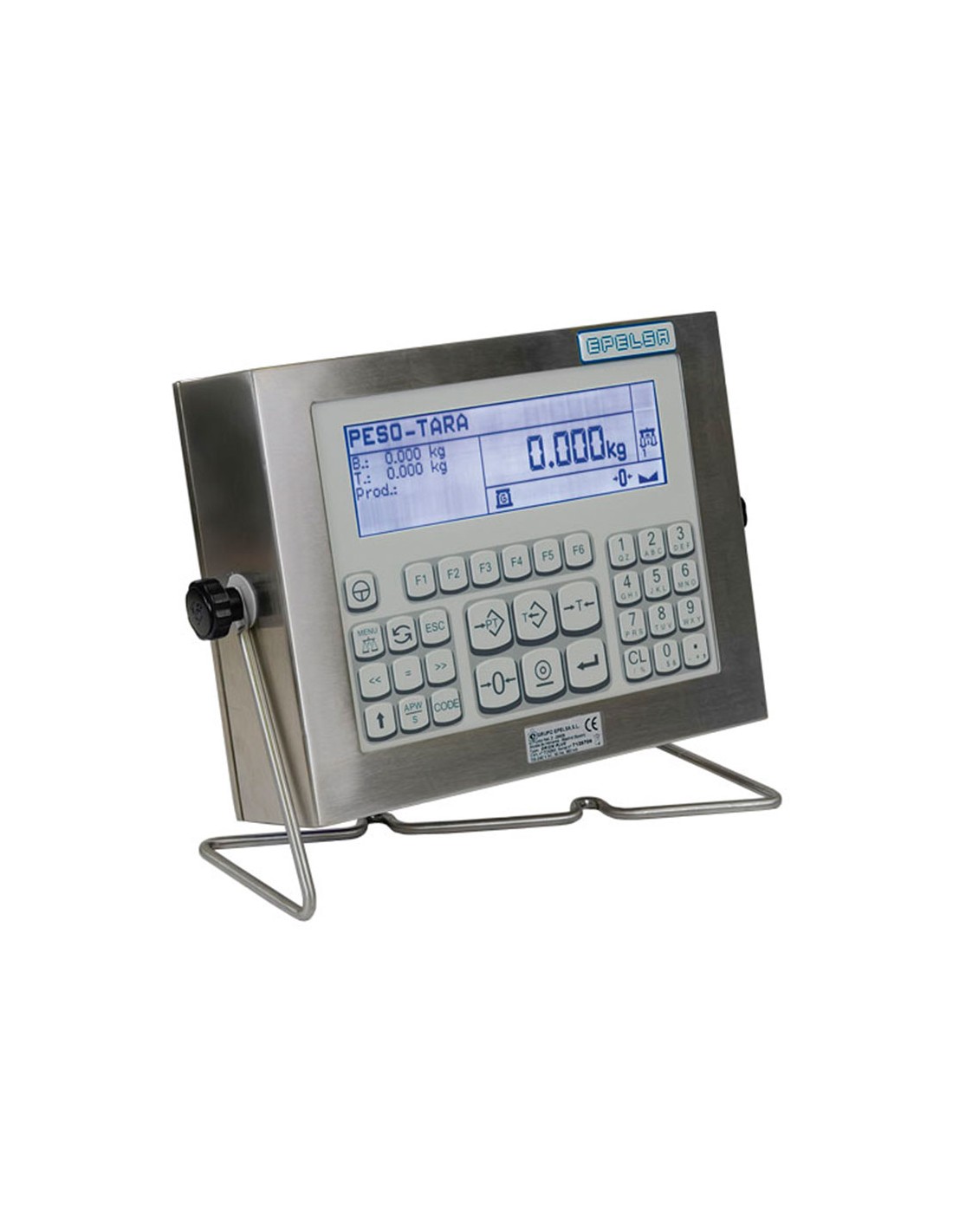

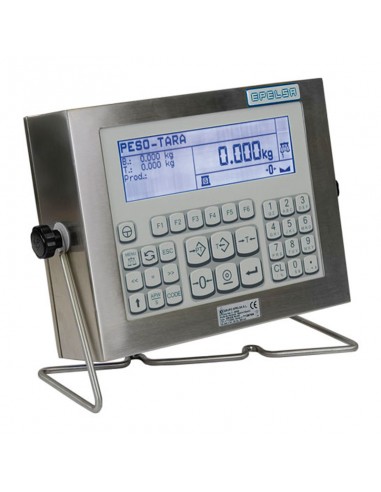

Cyber Plus bulweighing indicator

Cyber Plus bulweighing indicator


Multifunctional indicator with computer output, printer and repeater / Automatic batch totaliser.


240x64 dot LCD graphic display.
Waterproof housing (IP65) stainless steel finish
(matt polished).
Serial channels : 1 x RS-232/C and 1 x RS-232/C or RS422, for connection to PC, printer, labeller or repeater.
Ethernet channel (watertight connector).
Table and wall mounting.
Keypad with 6 function keys, 15 direct function keys and 10 numeric editing keys.
Supports up to 100,000 display divisions (internal use).
Multi-range, multi-interval possibility (ni ≤ 3000 for each partial range) with a maximum of 2 ranges or intervals.
Includes non-volatile RAM for data backup.
Maximum consumption: 30 W.
It incorporates a self-checking and self-correction programme, displaying the type of error or anomaly when it occurs.
Net weight: 3.2 kg / Packed: 4.49 kg.
Packing dimensions: 36 x 30 x 21 cm.

Option 2nd platform connection (1 independent connector).
Relay board (setpoints). Maximum 3 boards.
Analogue output board. (0-5 V / 0-10 V / 4-20 mA).
1 External Ethernet cable (RJ45 female RJ45 aerial connector).
1 USB channel.

Type (Indicators & repeaters): Multifunction

Tactile: No

Alphanumeric: Yes

With printer: No

with Labeler: No
