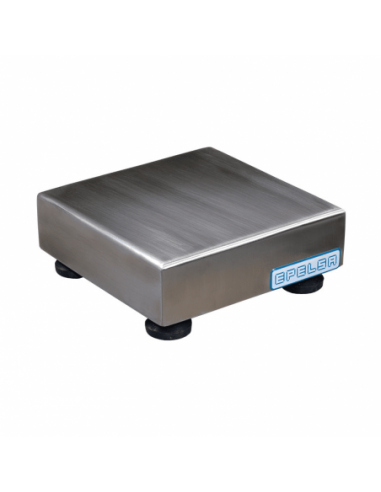

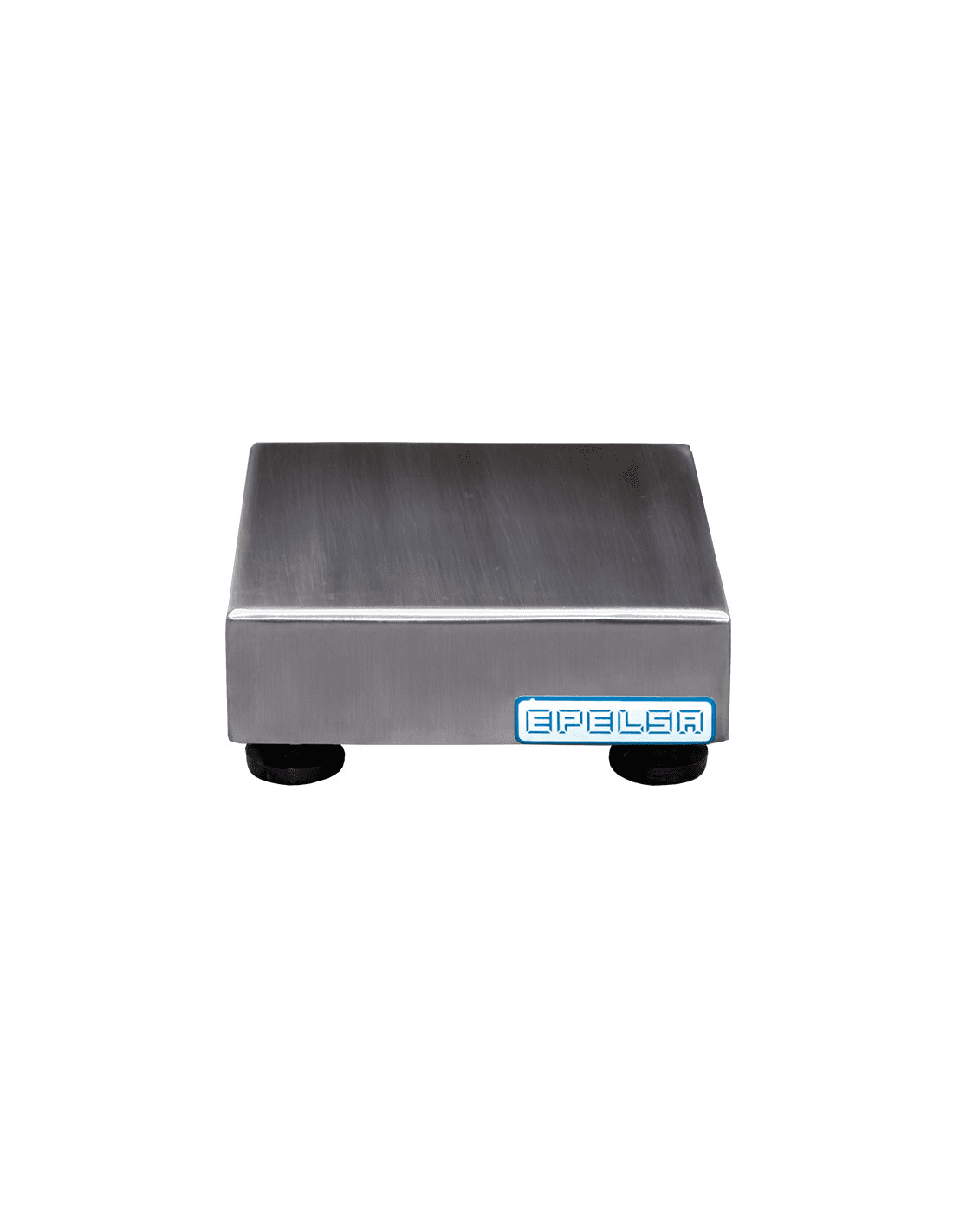

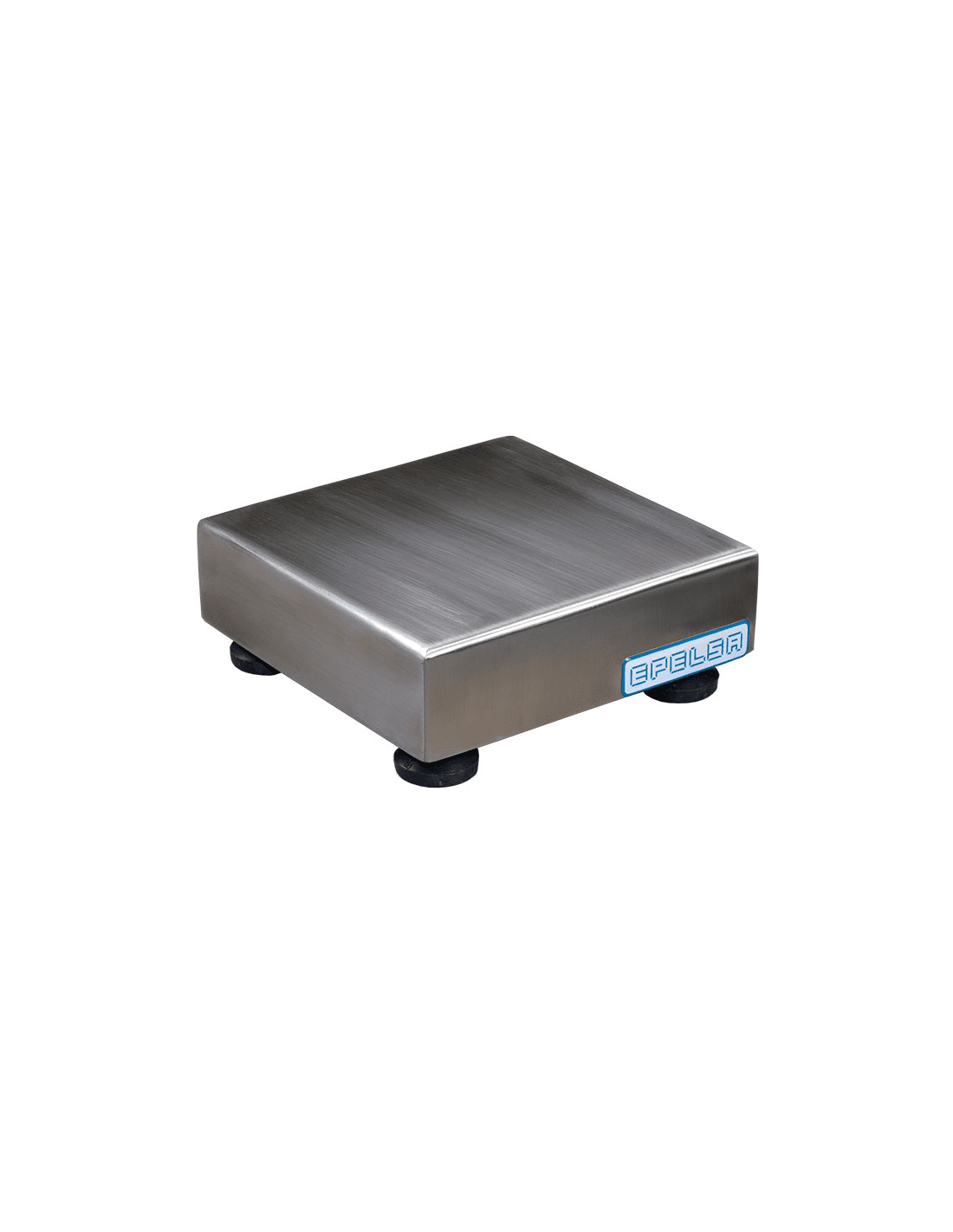

Stainless steel Single load cell platform - 15x15 - 0,6kg
Composed inside by a stainless steel base and a stainless steel plate support.
It incorporates four adjustable feet that allow its level and installation on the floor or countertop.
AISI-304 stainless steel top plate supported by 4 shock absorbers.
A strain-gauge load cell, made of aluminium, is mounted between the base and the plate support to obtain the electrical signal equivalent to the weight on the platform.
1.5 m cable with 15-pin DELTA connector (IP65).
Static overload protection.
Dimensions: 150 x 150 x 60mm (average height)
Capacities: 0.6 kg, 1.5 kg.
Platform material: Inox
Tipo (platforms): Monocell
