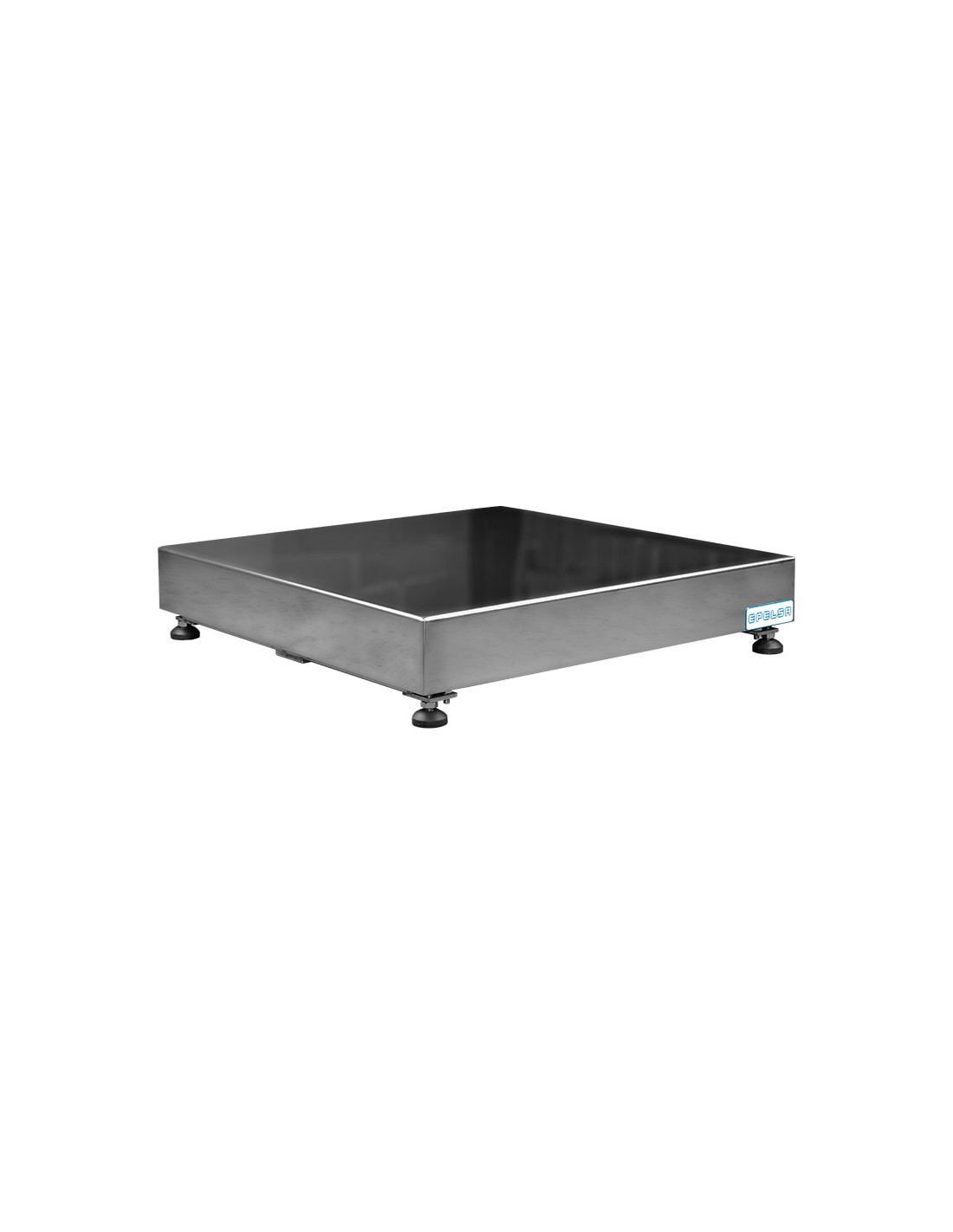

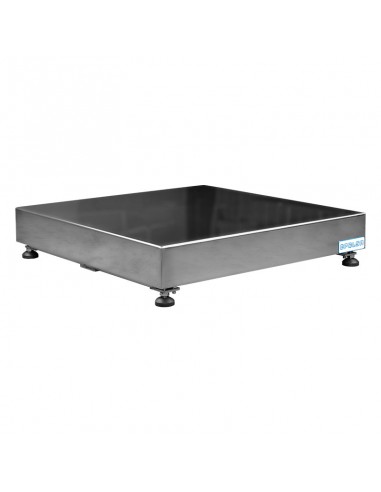

Structure of two high-strength AISI-316 stainless steel tubular parts incorporating the coupling for the load cell.
It incorporates an AISI-316 stainless steel cover.
It incorporates an IMV2 type load cell (IP67 protection).
Under- load cell and corner stops for overload protection.
2.5m. cable for connection to the weight indicator.
Adjustable height
Net weight: 20,55 Kg.
Dimensions: 600 x 600 x 110mm (minimum height).
Capacities: 30 kg, 60 kg, 150 kg and 300 kg (nickel-plated cell).
