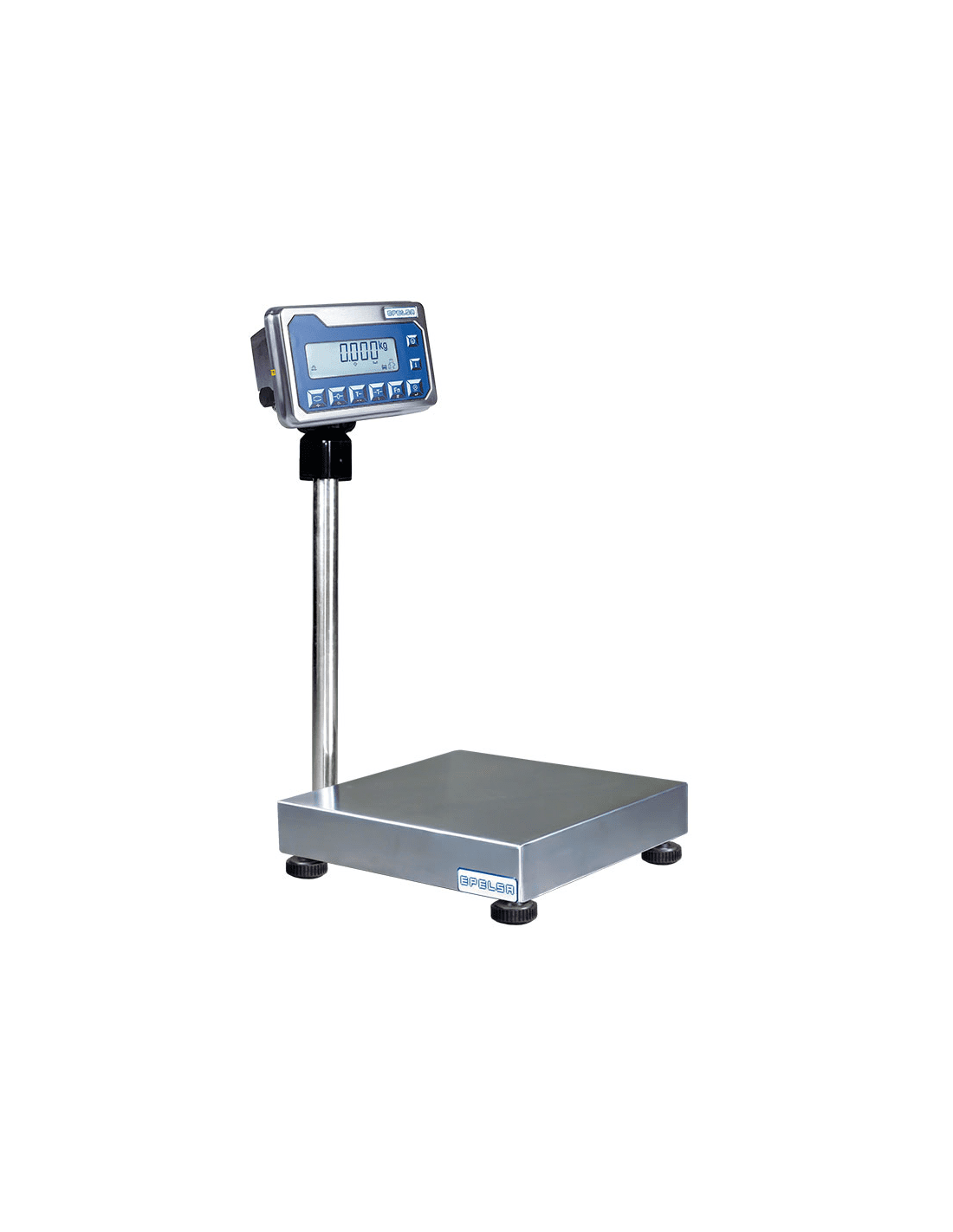

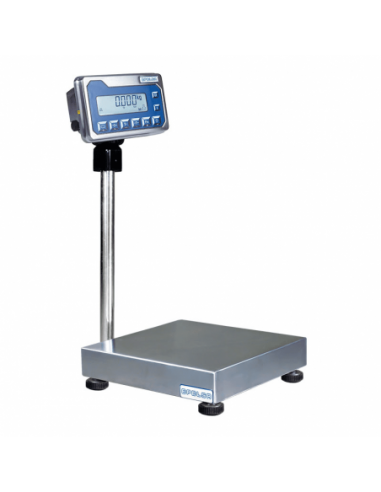

Sets consisting of an Orion Indicator without relays or with relays and a PMI Platform (60x60) - 30kg
Features Orion Indicator
Stainless steel finish (matt polished) with IP-65 protection.
Connection of weighing and serial channels via watertight 15-way SUB-D connectors.
Table or wall mounting
Display: 7 digits, 25.4 mm high, backlit by LEDs.
Low power consumption indicator (maximum: 8W).
Internal long-life battery (up to 250 hours), 3.7 V, 2,300 mAh (lithium-polymer).
Charging time: < 6 hours.
AC power supply: 100 to 240V (+10%, -15%) single-phase with earth connection.
Built-in serial channels for connection of computer, printer, labeller or repeater. (2 x RS-232/C
and 1 x RS-422).
Supports up to 100,000 display divisions
(internal use) on each of the 2 scales.
Full calibration and adjustment of parameters, both internal and operational, by keypad.
It incorporates a self-checking and self-correction programme, displaying the type of error or anomaly when it occurs.
Indicators for GROSS, NET, TARE, PREFERRED TARE, ZERO, TOTAL, STABILITY, UNIT PIECE WEIGHT, BATTERY STATUS, SCALE NUMBER, PIECES, RANGE 1, RANGE 2 and WEIGHT UNITS: kg, g, lb and t.
Net weight: 2.7 kg.
Features PMI Platform
AISI 304 stainless steel platform.
Dimensions (without feet mm):
-400 x 400 x 90 (Orionis 4)
-600 x 600 x 600 x 115 (Orionis 6)
-800 x 800 x 130 (Orionis 8)
Height-adjustable feet with rubber feet
Stainless steel screws, sleeve and level support.
Load cells approved to 3000 divisions.
Static overload protection.
Capacities: from 15 kg to 300 kg.
With Platform: With PMI-60 inox platform
