es::PM-DXN 40X40 15 kg (PM40+DXN-60)|0

PM-DXN industrial set

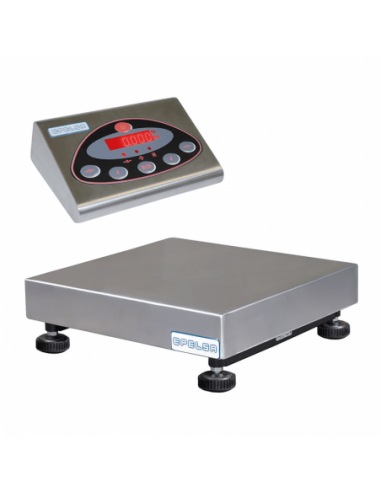

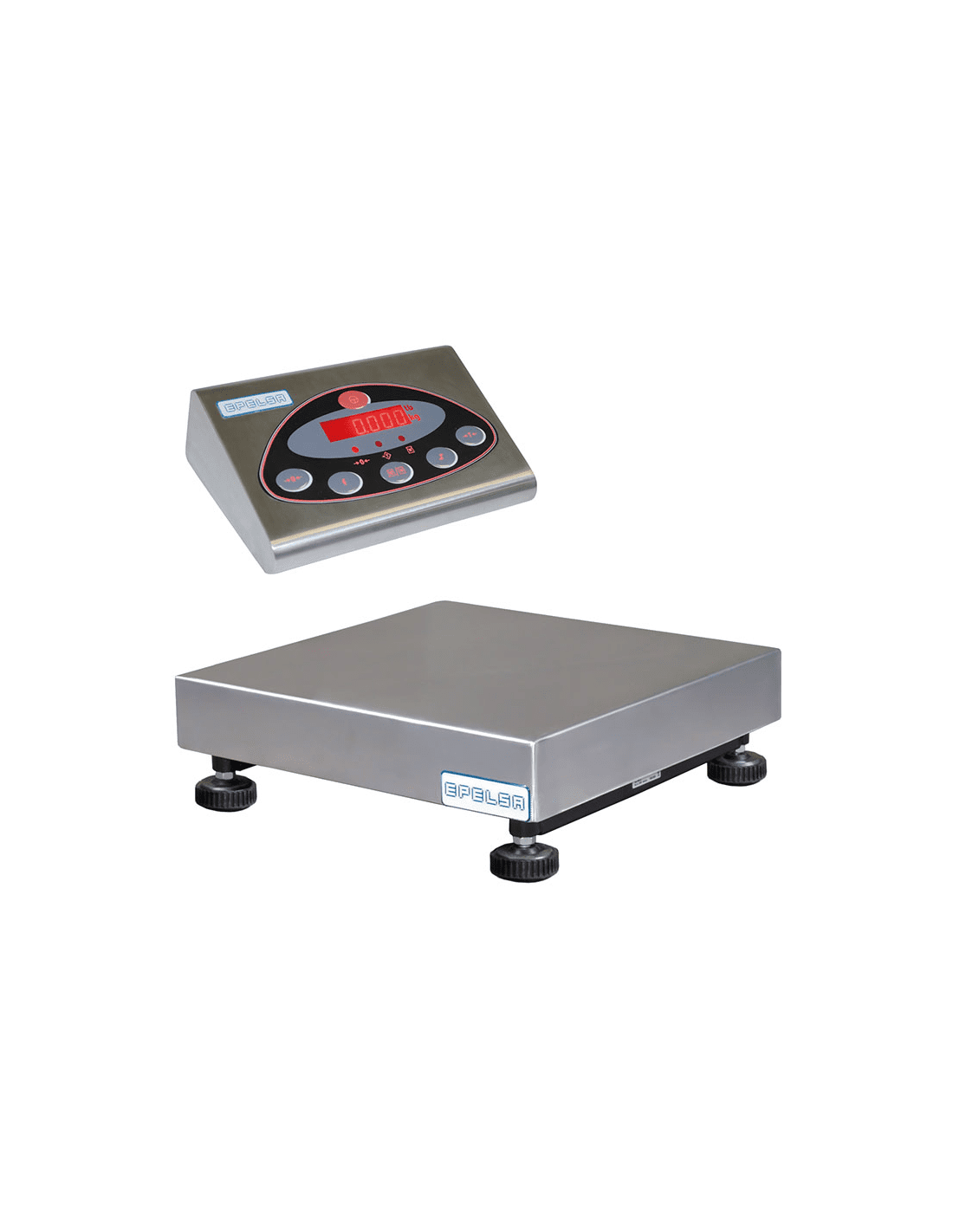

Set consisting of a DXN Weight indicator and a PM-40 - 40x40 - 15kg


Features DXN Indicator
IP65 stainless steel watertight housing.
Wall mounting for wall or column mounting.
6-button keypad with 6-digit LED numerical display, 14mm high.
Keyboard calibration.
Programmable indicator from 1kg up to 150t.
Number of divisions: from 100 to 10000 in steps of 100.
RS-232 output for printer or computer.
AC power supply: 220V +10% -15% and 50/60 Hz with TT.
Power consumption: Mains 7 VA max.
Protection against HF radiation and mains failure.

Features PM-40 Platform
Painted single load cell platform with stainless steel cover.
Dimensions: 400 x 400 x 90mm (without feet)
Stainless steel cover and IP65 protection.
Platforms with black painted steel structure.
Height adjustable feet with rubber feet.
Stainless steel screws, sleeve and level support.
Load cells approved to 3000 divisions.
Static overload protection.
Capacities: 15 kg, 30 kg, 60 kg and 150 kg.

With Platform: With painted PM-40 platform
