Marine industrial set
Marine industrial set
Marine industrial set

Marine industrial set

0060601000LZN
Description:

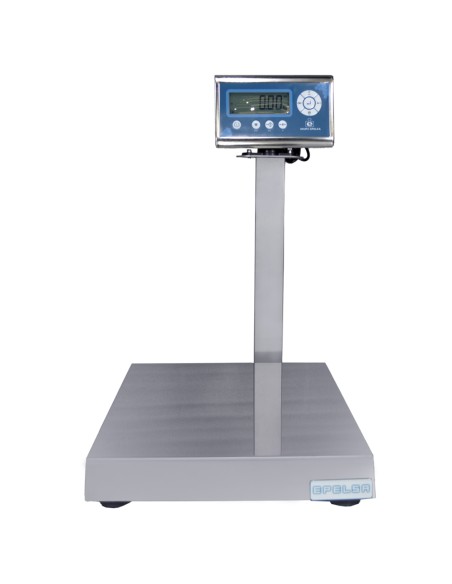

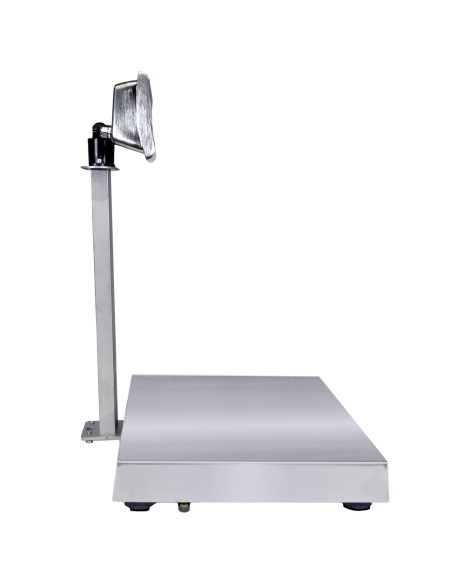

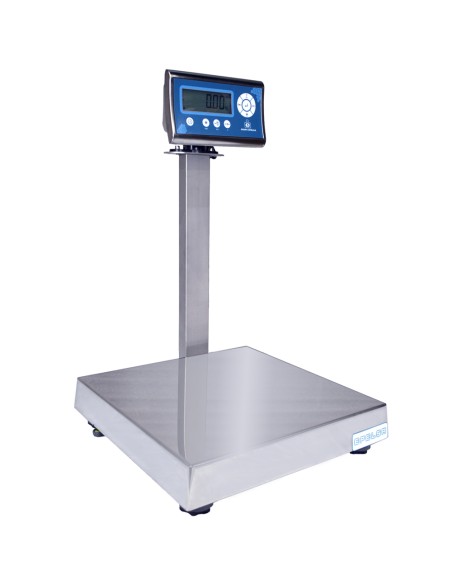

Set consisting of a DXN-60 indicator and a M40 BLUE F platform (with stainless steel case) - 15kg

Capacities
Dimensions


DXN-60 Indicator features
IP65 stainless steel watertight housing.
Wall mounting for wall or column mounting.
6-button keypad with 6-digit LED numerical display, 14mm high.
Keyboard calibration.
Programmable indicator from 1kg up to 150t.
Number of divisions: from 100 to 10000 in steps of 100.
RS-232 output for printer or computer.
AC power supply: 220V +10% -15% and 50/60 Hz with TT.
Power consumption: Mains 7 VA max.
Protection against HF radiation and mains failure.

M40 BLUE F Platform
Lightweight platform designed in PBT reinforced resin
It incorporates a stainless steel sheath protected against corrosion and different agents.
It incorporates an IMV1 type stainless steel cell with specific corrosion resistant protection and polishing.
Dimensions: 403 x 403 x 95mm.
Capacities: 15 kg, 30 kg, 60 kg and 150 kg.

With Platform: With M40 BLUE platform
