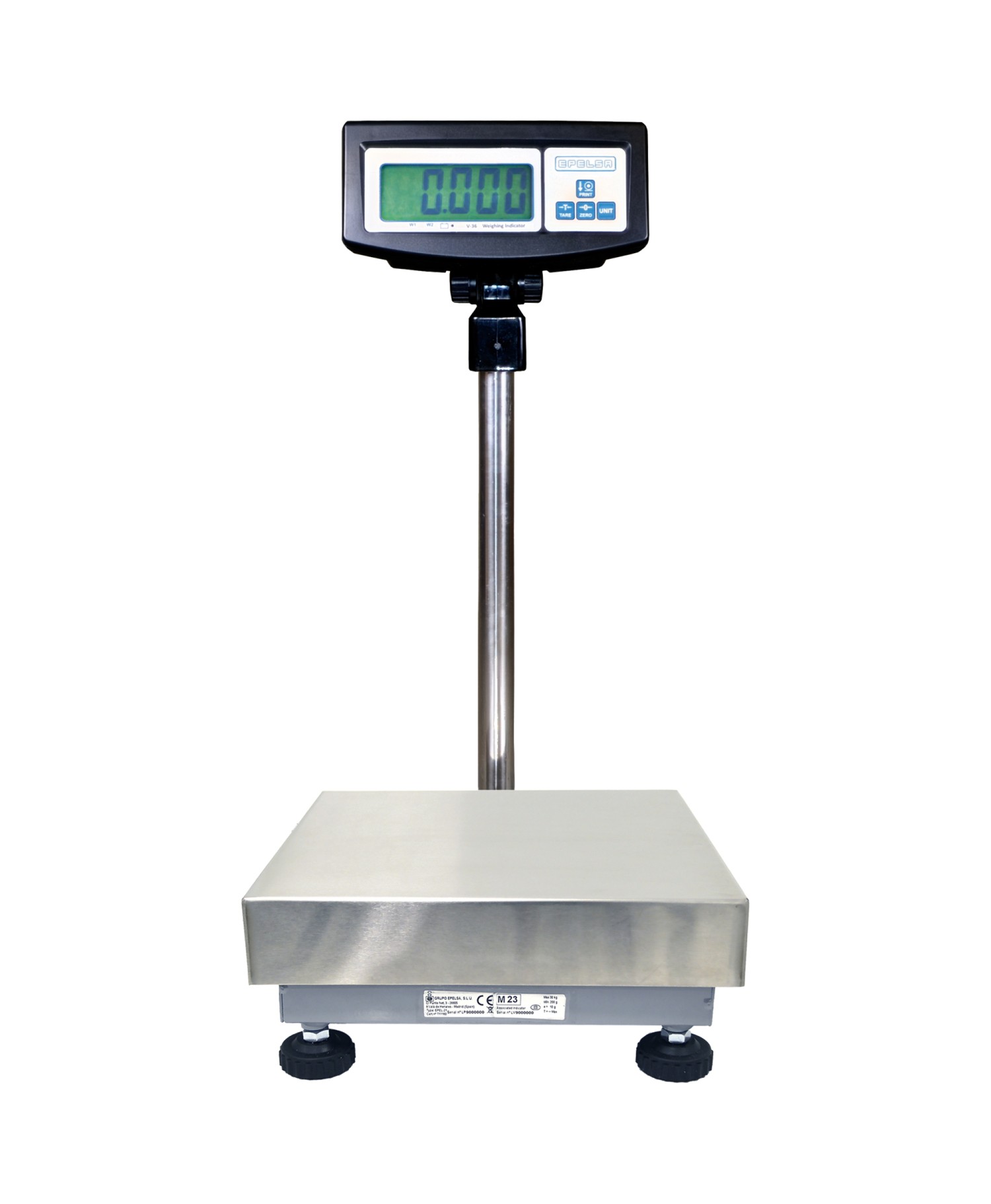

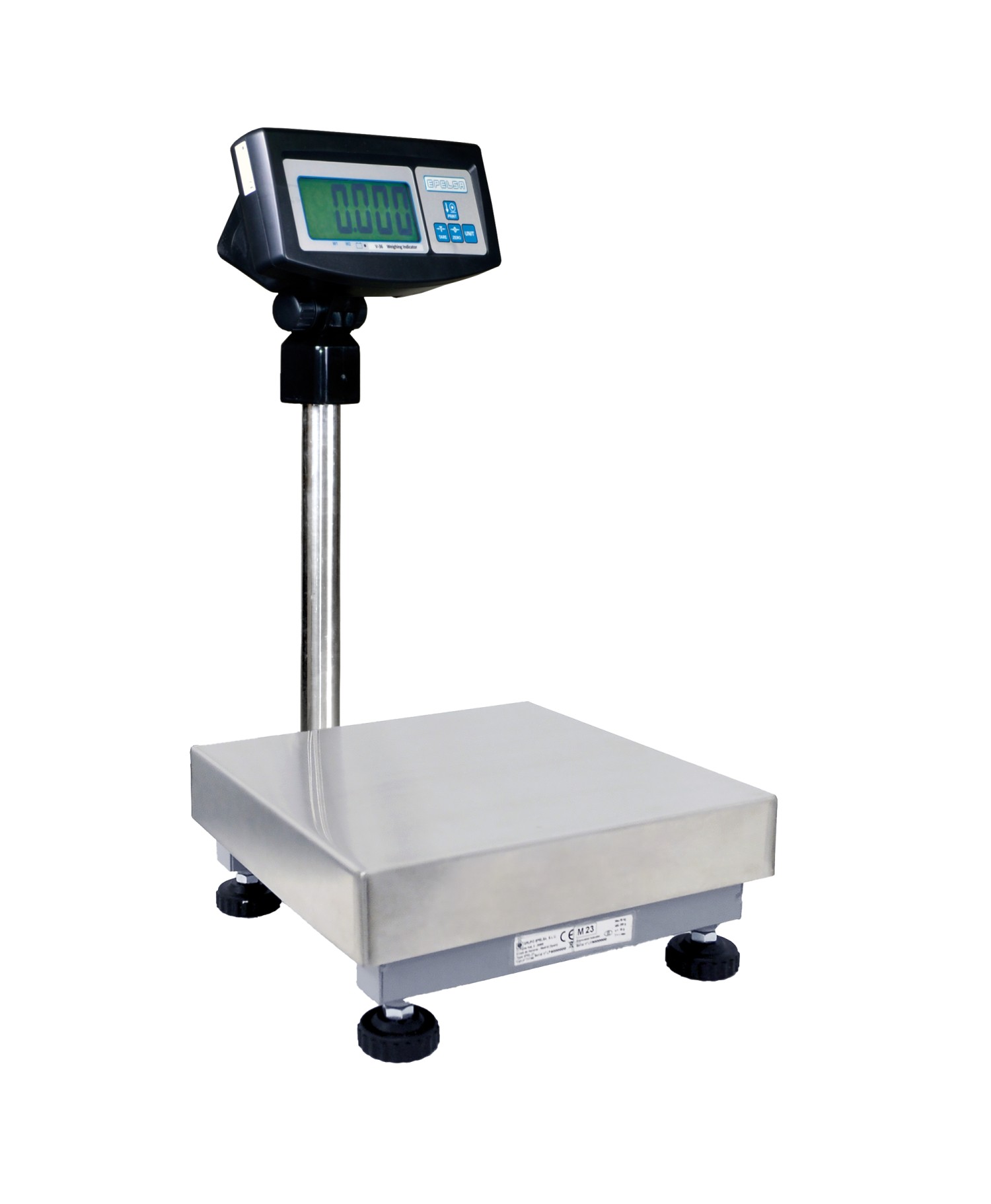

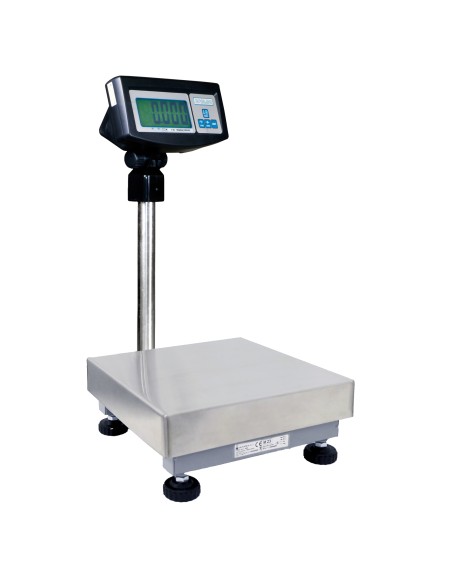

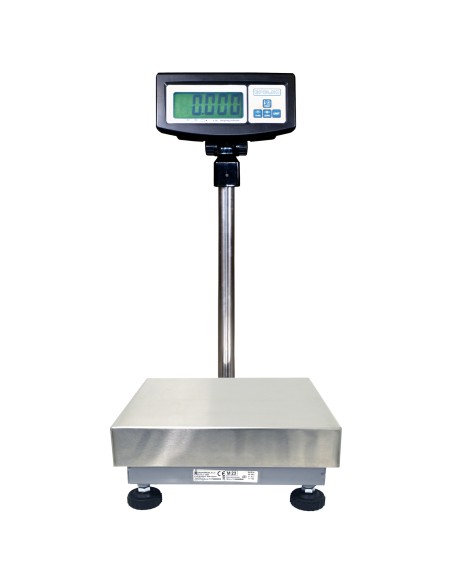

Challenger V industrial set
Set consisting of a V-36 Weight indicator and a 40x40cm PM Platform - 15kg/5g
Features V-36 Indicator
Only weight indicator and piece counter.
6-digit LCD display 46mm with backlight.
Tare and auto-zero function.
Selectable resolution: 3000 divisions approved
(up to 15,000 divisions in internal use).
Weight adjustment and correction by gravity.
Large digits 46mm LCD.
Backlight on/off key.
Key for sending data via serial channel.
220 V 50-60 Hz power supply and built-in rechargeable battery.
Display angle adjustment possible
Stainless steel support column
Battery status display.
Basic function piece counting.
Communications protocol $.
Autonomy 160h. without backlight, 50h. with backlight. ons: 300mm x 140mm x 143mm (L x W x H).

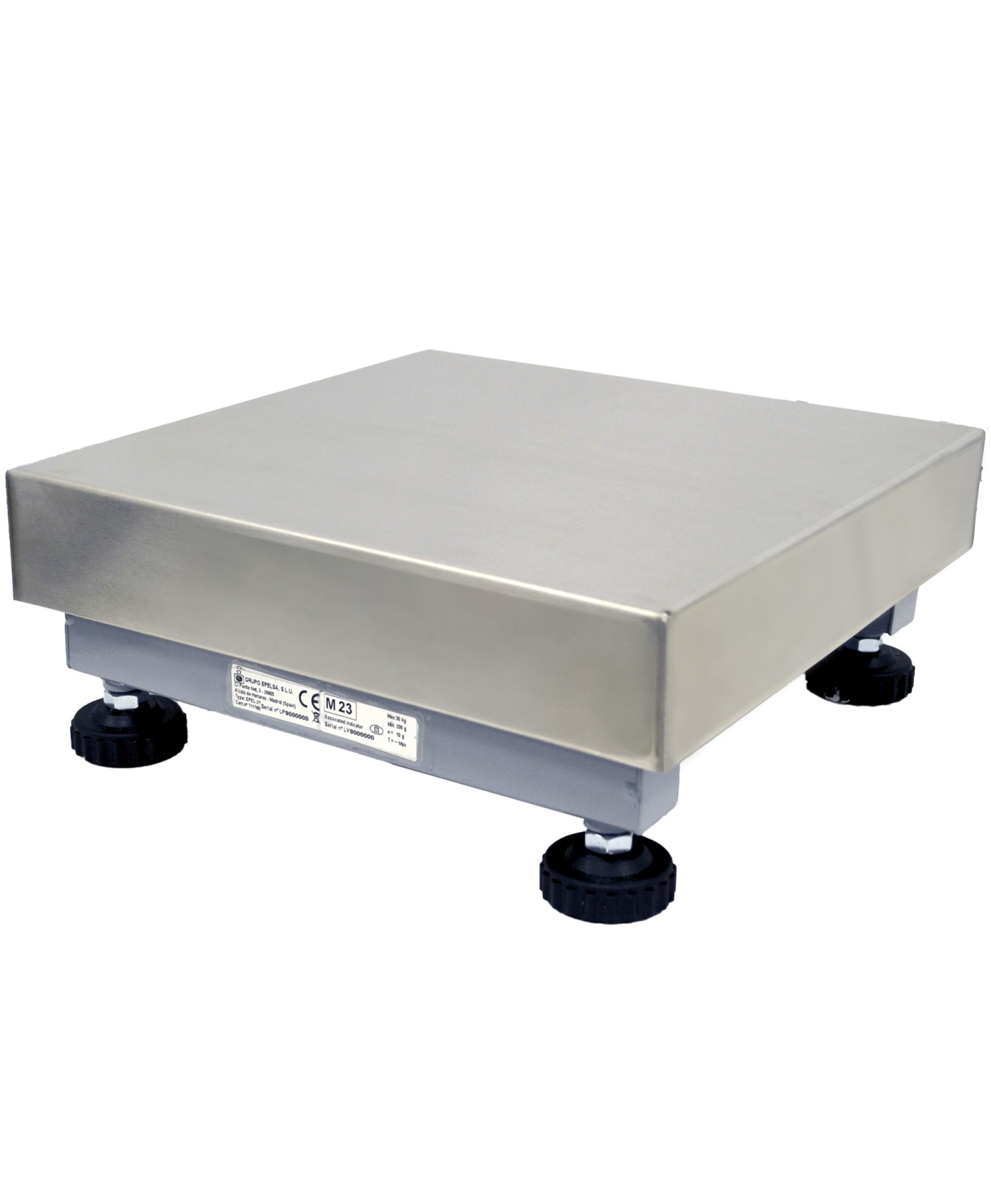

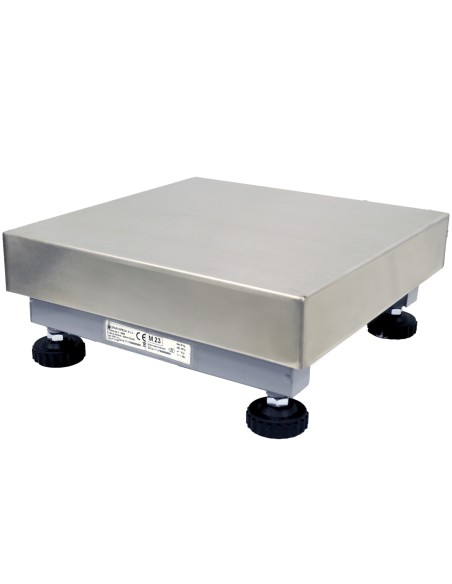

Features PM-40 Platform
Painted single load cell platform with stainless steel cover.
Dimensions: 400 x 400 x 90mm (without feet)
Stainless steel cover
Platforms with black painted steel structure.
Height-adjustable feet with rubber feet
Screws, sleeve and level support in stainless steel.
Load cells approved to 3000 divisions.
Static overload protection.
Capacities: 15 kg, 30 kg, 50 kg and 150 kg.
With Platform: With painted PM-40 platform
