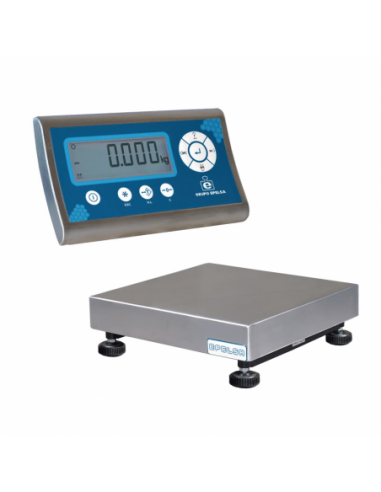

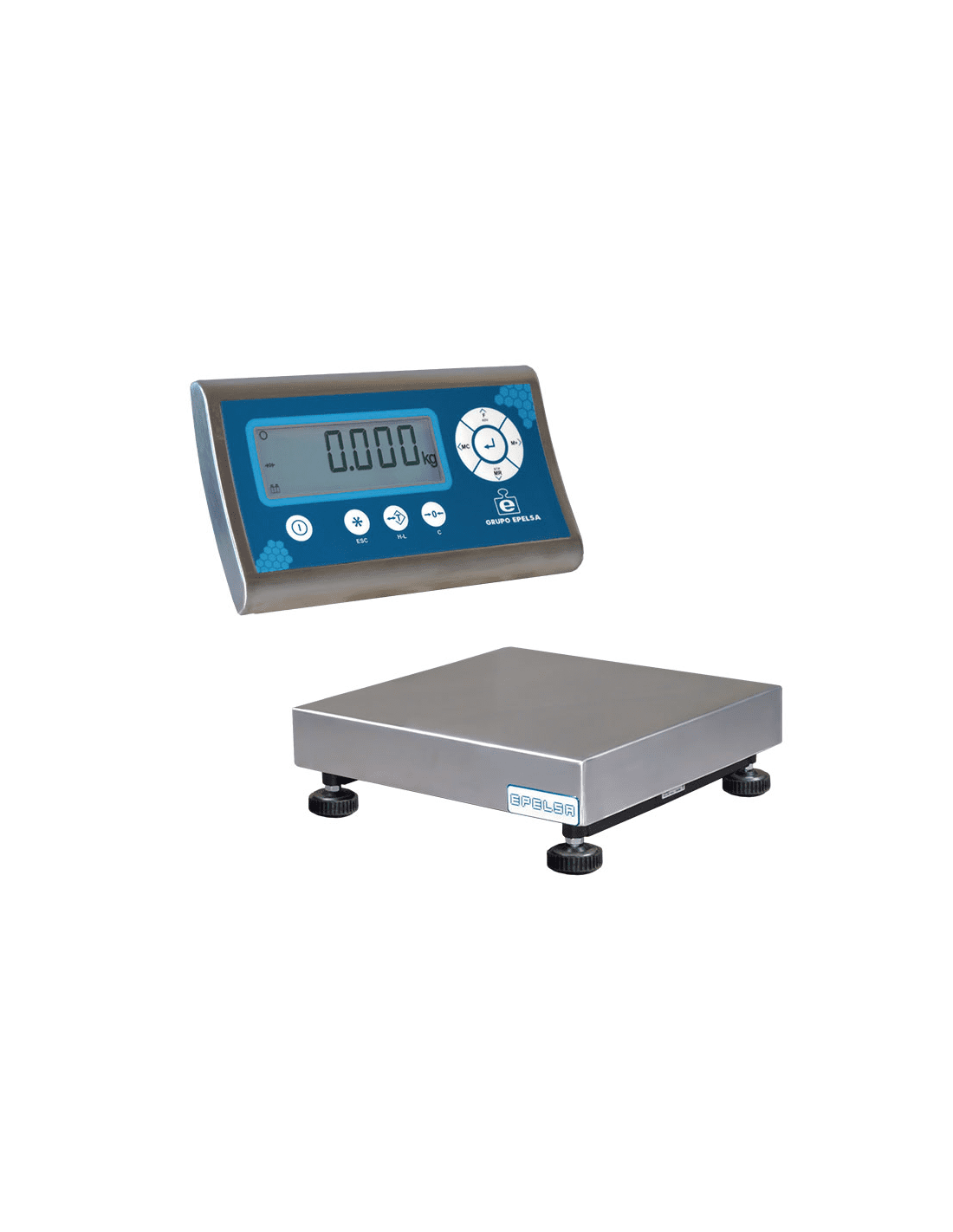

PM-DZN industrial set
Industrial set consisting in a DZN-66 indicator and a PM platform - 40x40 - 15kg
Stainless steel housing with IP-65 degree of protection.
Wall mounting for wall or column mounting in ABS.
8 membrane function keys plus ON/OFF.
6-digit 1” LCD and bar graph.
Adjustable backlight of different shades (capable of automatic change to green, yellow and red, like a traffic light).
Cable outlet through watertight cable glands.
Metrological access by opening the housing.
Column and/or wall support.
Internal resolution: 16,000,000 dots.
Maximum setting resolution (UI): 30,000 divisions.
Approved to 6000 divisions (2 ranges of 3000 divisions).
Maximum sensitivity: 0.4 µV/division.
Connection with up to 4 x 350 Ω cells (8 x 700 Ω cells).
Internal 2000mAh Li-ion battery, with up to 36 hours of autonomy.
RS-232 channel for PC or Printer (various ticket formats).
Maintenance: limited to cleaning if necessary.
Certificate according to European Directive 2014/31/EU for non-automatic weighing instruments, No. 0200-NAWI-09567, issued by FORCE Certification of Denmark.
Features PM Platform
Painted single load cell platform with stainless steel cover.
Dimensions: 400x400 (without feet)
Stainless steel cover
Platforms with black painted steel structure.
Height-adjustable feet with rubber feet
Screws, sleeve and level support in stainless steel.
Load cells approved to 3000 divisions.
Static overload protection.
Capacities: 60 kg, 150 kg, and 300 kg.
With Platform: With painted PM-40 platform
