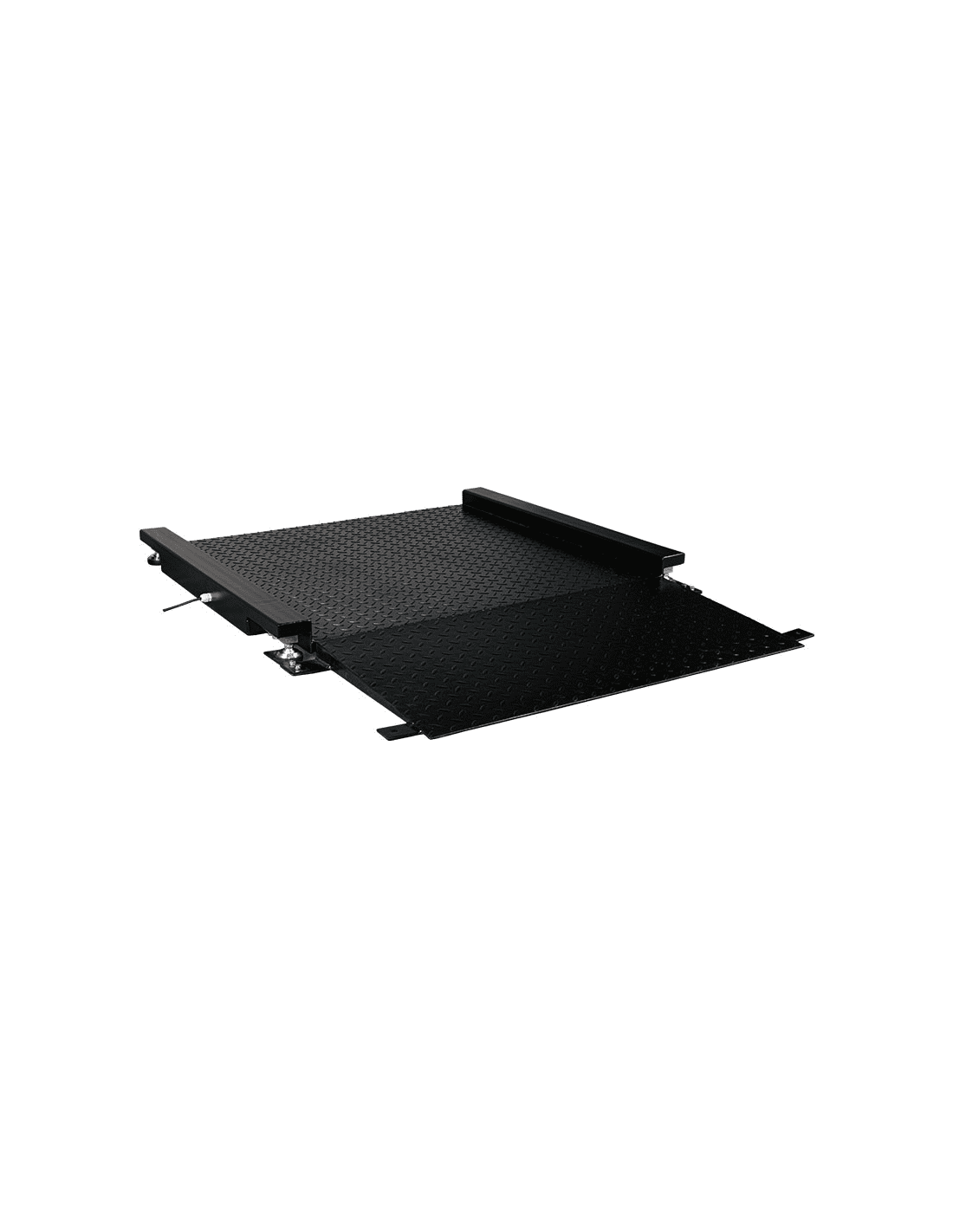

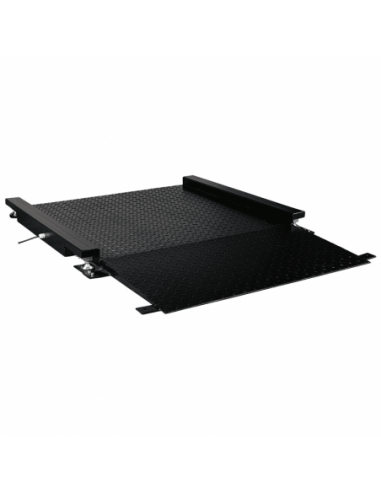

4 load cell platform in painted steel and low profile (tread height 46mm) - 80x80 - 150kg
Platform suitable for weighing with carts or forklifts due to its reduced height of the weighing area and low ramp slope.
Made of painted steel with tear plate.
Lateral tube area that houses the load cells 80mm wide and 97mm in total height from the support floor of the scale.
Load cells SQB IP68 / SQBI IP68.
Each cell is connected to the others through a watertight junction box from which a cable (5m) comes out to connect to the display.
Platform material: Painted
Tipo (platforms): 4 cells
