PSG platform

0260132000
Description:

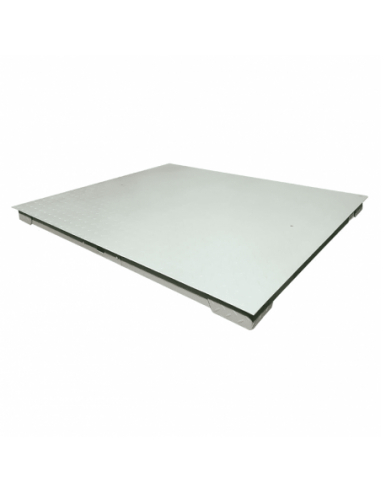

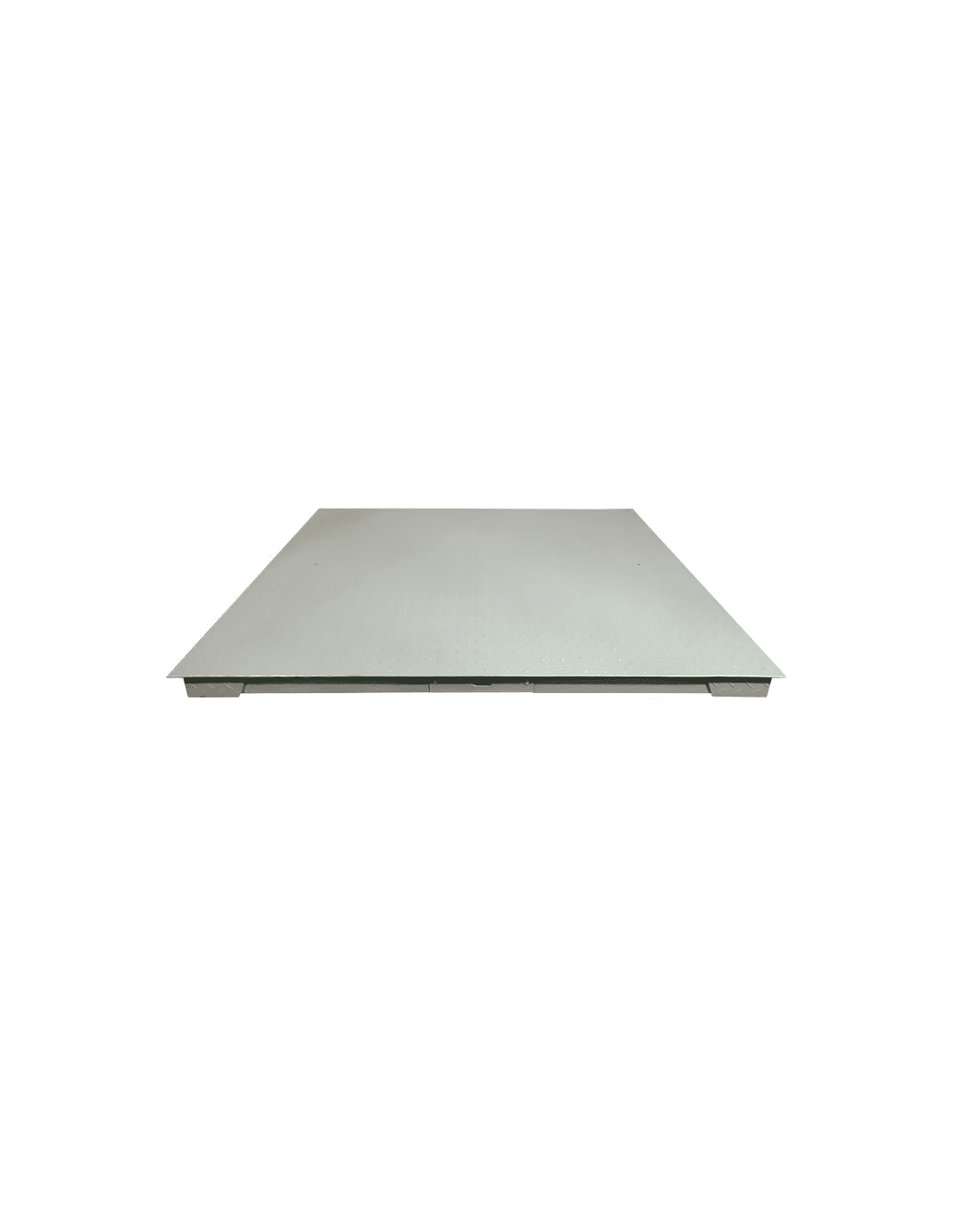

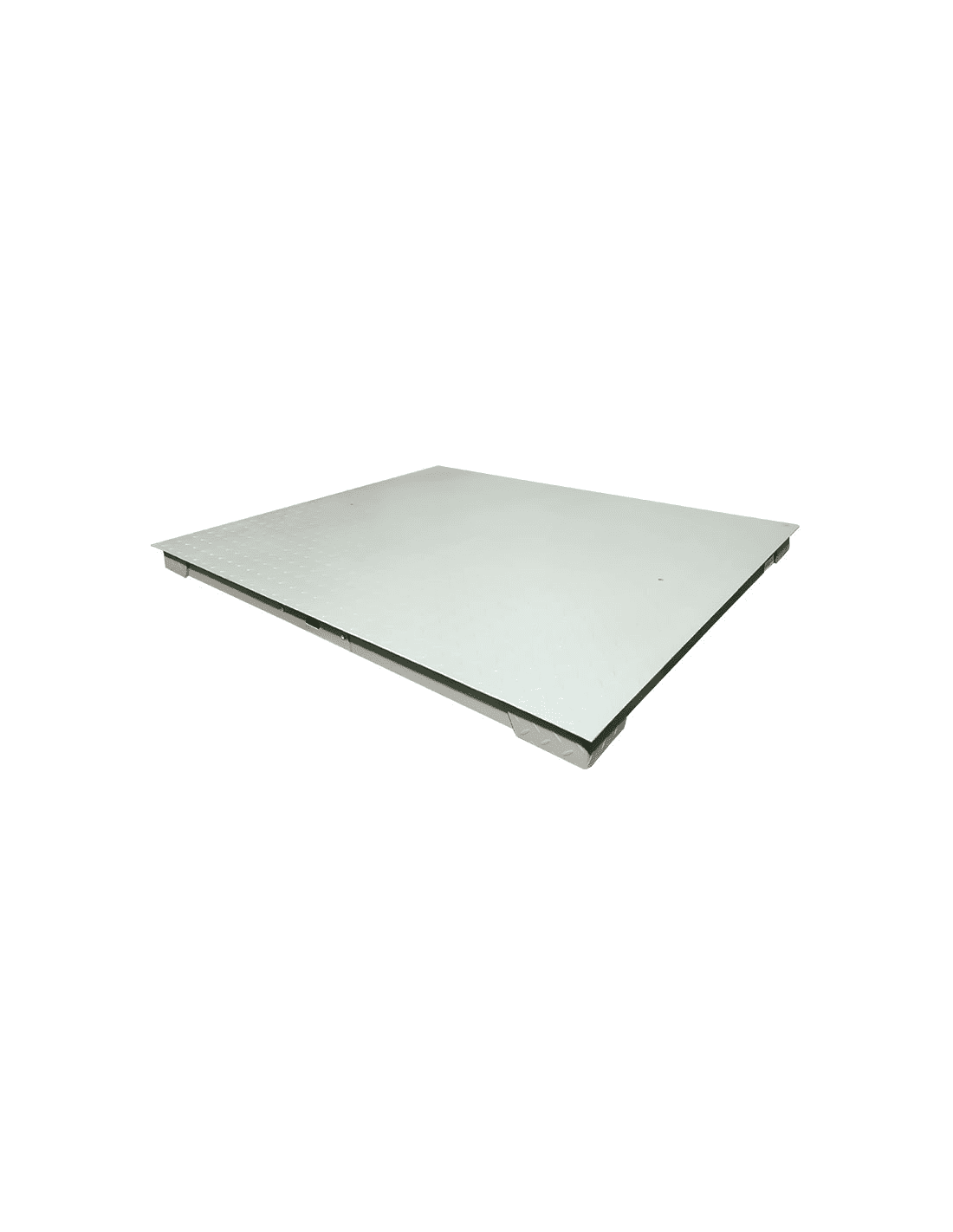

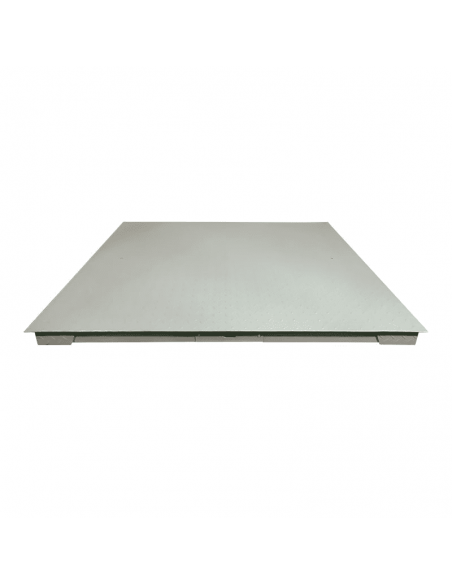

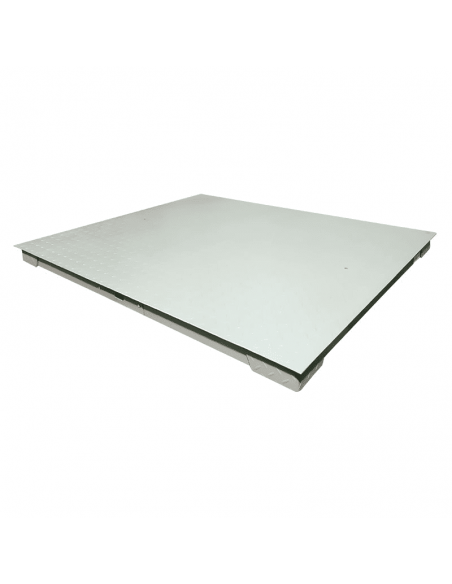

4 cell platform sturdy steel platform painted in grey - 1200x1200 - 1.500kg



Sturdy steel platform painted in grey RAL 7012.
On-ground installation.
It has 4 load cells model SQB-A, made of nickel-plated steel (IP67), each one supported on the floor by a zinc-plated steel pivoting foot.
Each load cell is connected to the others by means of a junction box (minimum IP65 protection) from which a cable (4.8m) for the connection to the weight indicator comes out.
Height adjustable from 105 to 120 mm.

Dimensions and Weights:
-1200 x 1200 (84.5 kg) / Packing: 1210 x 1210 x 220 (96.5 kg).
-1200 x 1500 (100 kg) / Packing: 1210 x 1510 x 220 (112 kg).
-1500 x 1500 (116 kg) / Packing: 1510 x 1510 x 220 (129 kg).
-1500 x 2000 (159.5 kg) / Packing: 1510 x 2010 x 220 (175.5 kg).
Capacities: 1,500 kg and 2,000 kg.

Platform material: Painted

Dimmensions: 120x120

Tipo (platforms): 4 cells
