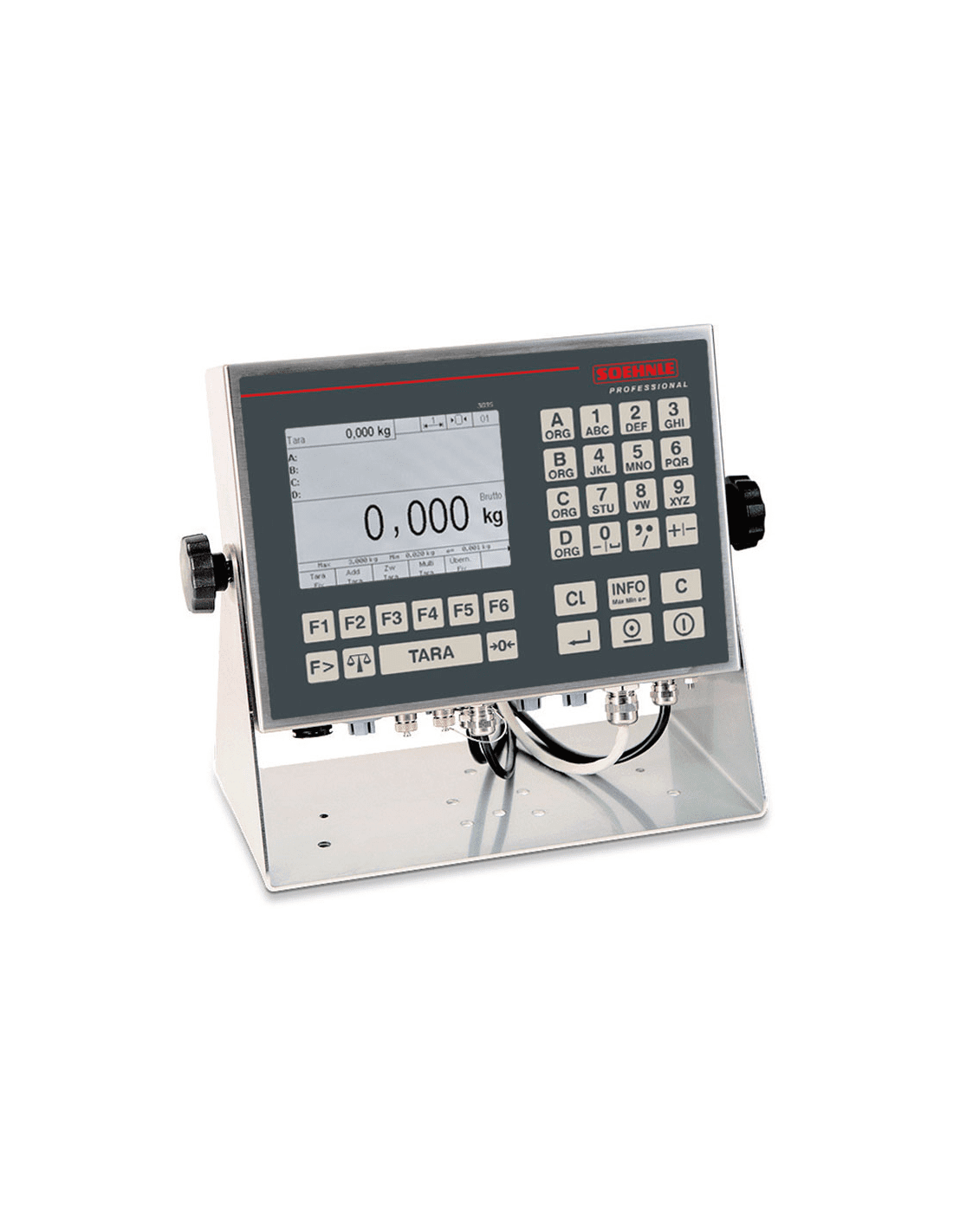

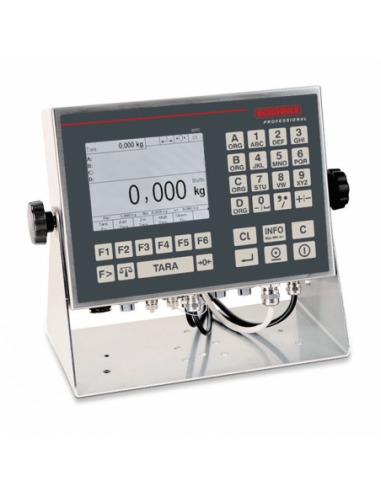

EP3035 indicator


Multi-function Weight indicator for complex applications, with IP67 stainless steel housing


Approved, class III, up to 10,000 divisions.
Protection class IP 67.
10 applications: tare weighing, totalising and order picking, piece counting, checkweighing (+/-), sorting, batching, neutral measurement, vehicle weighing, dynamic weighing, percentage weighing.
32 keys, alphanumeric data input.
Memory for 999 fixed values per memory (option).
4 data memories, e.g. for product number, customer number or shipping ticket number, 6 lines with 35 characters each.
Barcode management.
RS-232 data interface or USB.
Memory card (Micro SD card) for alibi storage with a capacity of 2 million entries, as well as for the storage of fixed values and for the installation of software updates and for data backup.
Table or wall mount.

Compact housing made of stainless steel AISI-304, protection class IP 67, suitable for harsh operating conditions.
Integrated power supply, 100 - 240 V, 50 - 60 Hz.
Pressure is compensated by gas-permeable membrane.

Display and keyboard
Large 5.7” TFT cooler display (QVGA 320 x 240 pixels) (QVGA 320 x 240 pixels)
Adjustable background colour (green, white, light blue, yellow, blue, magenta and red), background illumination adjustable from 30 to 100%.
Display color control function.
Large weight display with 20 mm height.
Membrane keyboard with 32 large keys for reliable operation.

Connectivity options
A digital precision scale can be connected via the RS 232 interface.
Approved resolution up to 10,000 divisions / 3 x 3,000 divisions with corresponding load cells.
A barcode scanner can be connected via RS 232 interface, or a computer or printer.
External PC keyboard via USB

Other interfaces are optionally available (Ethernet and/or I/O card with 4 inputs and 6 outputs, or ID chip for platform).
Printing, control and inventory management systems can be integrated.

Barcode administration
With 10x filter and multi-scan function.

Type (Indicators & repeaters): Multifunction

Tactile: No

Alphanumeric: Yes

With printer: No

with Labeler: No
